Eaton-Airflex CB Clutch - 8CB250 Series
Eaton-Airflex CB Clutch - 8CB250 Series
SKU:CLU-4f6466
Eaton-Airflex CB Clutch - 8CB250 Series: Ideal for high-speed industrial applications, offering a torque rating of 4290 lb·in | 485 Nm.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Eaton-Airflex CB Clutch - 8CB250 Series
$2,899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Clutch - 8CB250 Series
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB Clutch from the 8CB250 series sets the standard for superior performance and reliability in industrial applications. Designed for high-speed operations, it offers a robust torque rating of 4290 lb·in | 485 Nm. With dimensions crafted for precise coupling and power transmission, this clutch ensures efficiency and durability in demanding environments.
Product Specifications
Note 0
Refers to basic part number only and does not include the rotorseal and hose. When ordering, specify shaft diameter.Refer to Rotorseal Section for mounting and dimension information.Part numbers for shaft diameters:1.250 thru 1.500 in - 70x135All other diameters - 70x45
Specifications Actuation
Air Applied
Specifications Available For Shaft Diameter
1.250 thru 2.000 in | 1.250 thru 2.000 mm

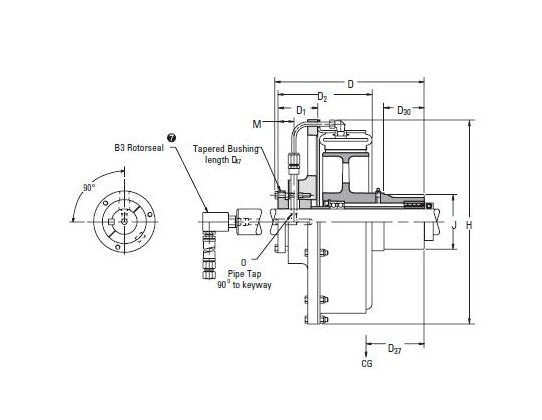

Specifications Dimension D
11.25 in | 286 mm
Specifications Dimension D1
2.69 in | 68 mm
Specifications Dimension D2
7.19 in | 183 mm
Specifications Dimension D30
3.25 in | 83 mm
Specifications Dimension D33
0.54 in | 14 mm
Specifications Dimension D37
6.48 in | 165 mm
Specifications Dimension D47
2.50 in | 64 mm
Specifications Dimension H
12.88 in | 327 mm
Specifications Dimension J
4.252 in | 108.0 mm
Specifications Dimension M
1.38 in | 35 mm
Specifications Drum
1.0 | 0.04 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Speed
1200 rpm | 1700 rpm
Specifications Shaft Diameter
1.375 in | 2.000 in
Specifications Size
8CB250
Specifications Torque Rating 75 Psi55 Bar
4290 lb·in | 485 Nm
Specifications Weight
51 lb | 23 kg
Specifications Wk2 Element Spider J
4.1 lb·ft² | 0.17
