Eaton-Airflex CB Clutch and Brake - Model PCB-206
Eaton-Airflex CB Clutch and Brake - Model PCB-206
SKU:CLU-38d08c
Dependable Eaton-Airflex PCB-206 Tapered Bushing Arrangement for high-speed industrial applications.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
Eaton-Airflex CB Clutch and Brake - Model PCB-206
$1,199.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Clutch and Brake - Model PCB-206
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

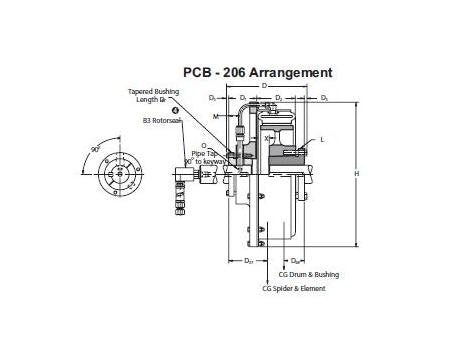

The Eaton-Airflex PCB-206 Tapered Bushing Arrangement is a robust clutch and brake element assembly designed for high-speed, cyclic industrial applications. With a Size of 6CB200 and dimensions optimized for performance, it offers reliable and precise operation. The air-applied actuation ensures efficient power transmission and coupling. Ideal for demanding environments, this arrangement meets stringent standards for durability and performance.
Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.406 in | 10.3 mm
Specifications Dimension D
6.88 in | 175 mm
Specifications Dimension D1
68 in
Specifications Dimension D3
7 in
Specifications Dimension D37
2.0 in | 51 mm
Specifications Dimension D38
1.4 in | 36 mm
Specifications Dimension D47
64 in
Specifications Dimension M
35 in
Specifications Dimension X
0.44 in | 11 mm
Specifications Hub Shaft Diameter
1.250 thru 2.000
Specifications Manufacturer
Eaton-Airflex
Specifications Size
6CB200
Specifications Spider Shaft Diameter
1.250 thru 2.000
