Eaton-Airflex CB Clutch - Bearing Mounted Arrangement
Eaton-Airflex CB Clutch - Bearing Mounted Arrangement
SKU:CLU-b60848
Dependable Eaton-Airflex CB Clutch for high-speed industrial applications, offering 8150 lb·in Torque & 1100 rpm Speed
Regular price
$2,350.99
Regular price
Sale price
$2,350.99
Unit price
per
Initiate Order
Eaton-Airflex CB Clutch - Bearing Mounted Arrangement
$2,350.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Clutch - Bearing Mounted Arrangement
$2,350.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB Clutch with a Bearing Mounted Arrangement is expertly engineered to deliver reliable clutch or brake performance in demanding industrial environments. Designed for high-speed cyclic operations and power transmission applications, it offers a Torque Rating of 8150 lb·in | 921 Nm and a maximum speed of 1100 rpm | 1700 rpm. With dimensions and specifications meeting stringent industry standards, this clutch assembly ensures optimal efficiency and durability for diverse operational needs.
Product Specifications
Note 0
Refers to basic part number only and does not include the rotorseal and hose. When ordering, specify shaft diameter.Refer to Rotorseal Section for mounting and dimension information.Part numbers for shaft diameters:1.250 thru 1.500 in - 70x135All other diameters - 70x45
Specifications Actuation
Air Applied
Specifications Available For Shaft Diameter
1.750 thru 2.500 in | 1.750 thru 2.500 mm

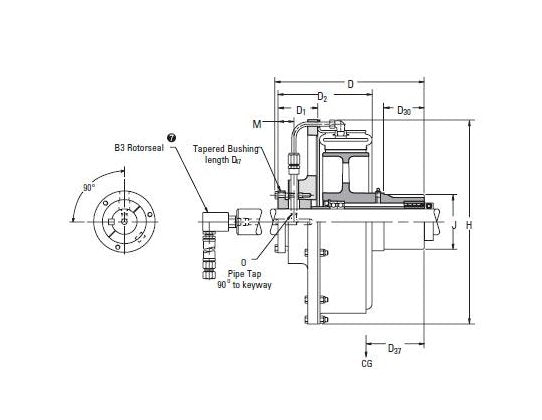

Specifications Dimension D
13.06 in | 332 mm
Specifications Dimension D1
3.44 in | 87 mm
Specifications Dimension D2
8.56 in | 217 mm
Specifications Dimension D30
3.50 in | 89 mm
Specifications Dimension D33
0.73 in | 19 mm
Specifications Dimension D37
7.76 in | 197 mm
Specifications Dimension D47
2.88 in | 73 mm
Specifications Dimension H
15.38 in | 391 mm
Specifications Dimension J
4.752 in | 120.7 mm
Specifications Dimension M
1.38 in | 35 mm
Specifications Drum
2.6 | 0.11 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Speed
1100 rpm | 1700 rpm
Specifications Shaft Diameter
1.500 in | 2.250 in
Specifications Size
10CB300
Specifications Torque Rating 75 Psi55 Bar
8150 lb·in | 921 Nm
Specifications Weight
88 lb | 40 kg
Specifications Wk2 Element Spider J
12 lb·ft² | 0.50
