Eaton-Airflex CB Clutch & Brake Assembly - 14CB400
Eaton-Airflex CB Clutch & Brake Assembly - 14CB400
SKU:CLU-aca6ce
Dependable Eaton-Airflex CB Clutch & Brake Assembly for industrial applications, Size 14CB400 with high torque rating.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Eaton-Airflex CB Clutch & Brake Assembly - 14CB400
$1,899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Clutch & Brake Assembly - 14CB400
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

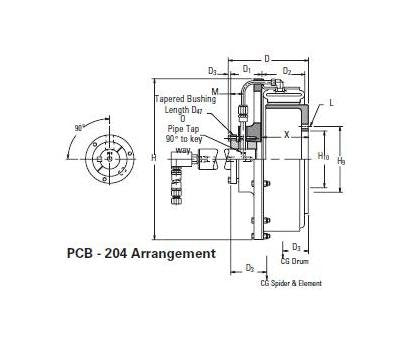

The Eaton-Airflex CB Clutch & Brake Assembly in Size 14CB400 is engineered for reliable performance in demanding industrial settings. Ideal for high-speed cyclic operations, power transmission, and coupling applications. With a torque rating of 19700 lb·in at 75 psi (2230 Nm at 5.2 bar), this assembly ensures precision and durability. Its dimensions, such as D, H, and shaft diameter, meet stringent industry standards for quality and efficiency.
Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
9.34 in | 237 mm
Specifications Dimension D2
4.72 in | 120 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D37
4.1 in | 104 mm
Specifications Dimension D38
1.6 in | 41 mm
Specifications Dimension H
17.62 in | 448 mm
Specifications Dimension H10
6.250 in | 209.6 mm
Specifications Dimension H9
7.250 in | 184.2 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
6.19 in | 157 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
10.00 in | 254 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
2.563 thru 3.125
Specifications Size
14CB400
Specifications Torque Rating At 52 Bar
2230 Nm
Specifications Torque Rating At 75 Psi
19700 lb·in
