Eaton-Airflex CB Clutches and Brakes Tapered Bushing Arrangement - Size 12CB350
Eaton-Airflex CB Clutches and Brakes Tapered Bushing Arrangement - Size 12CB350
SKU:CLU-68491c
High-performance Eaton-Airflex CB Clutches & Brakes Tapered Bushing Arrangement for precise industrial power transmission.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Eaton-Airflex CB Clutches and Brakes Tapered Bushing Arrangement - Size 12CB350
$2,899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Clutches and Brakes Tapered Bushing Arrangement - Size 12CB350
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB Clutches and Brakes Tapered Bushing Arrangement in Size 12CB350 is meticulously crafted to deliver reliable clutch and brake performance in demanding industrial settings. Ideal for high-speed, cyclic operations and power transmission, this arrangement ensures precision and durability. With dimensions meeting exacting standards, including an Air Applied actuation system by Eaton-Airflex, this product is engineered to excel in rigorous applications.

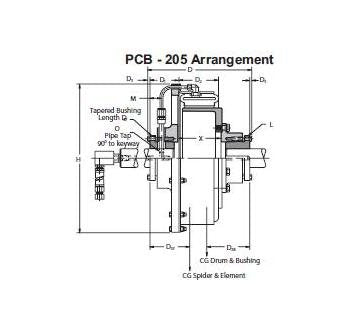

Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
14.38 in | 365 mm
Specifications Dimension D1
4.31 in
Specifications Dimension D3
0.38 in
Specifications Dimension D37
3.7 in | 94 mm
Specifications Dimension D38
3.9 in | 86 mm
Specifications Dimension D47
4.38 in
Specifications Dimension M
2.25 in
Specifications Dimension X
4.88 in | 124 mm
Specifications Hub Shaft Diameter
2.563 thru 3.125
Specifications Manufacturer
Eaton-Airflex
Specifications Size
12CB350
Specifications Spider Shaft Diameter
2.563 thru 3.125
