Eaton-Airflex CB Clutches - Bearing Mounted Arrangement 6CB200
Eaton-Airflex CB Clutches - Bearing Mounted Arrangement 6CB200
SKU:CLU-88239e
Reliable Eaton-Airflex CB Clutches for demanding industrial applications, featuring 6CB200 size and 2040 lb·in torque rating. Ideal for high-speed operations and power transmission.
Regular price
$1,675.00
Regular price
Sale price
$1,675.00
Unit price
per
Initiate Order
Eaton-Airflex CB Clutches - Bearing Mounted Arrangement 6CB200
$1,675.00
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Clutches - Bearing Mounted Arrangement 6CB200
$1,675.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB Clutches featuring the 6CB200 size offer unparalleled reliability for clutch or brake applications in demanding industrial settings, excelling in high-speed operations and power transmission requirements. With a torque rating of 2040 lb·in | 231 Nm, and available for shaft diameters from 1.250 thru 2.000 in | 1.250 thru 2.000 mm, these clutches are designed for efficiency and durability. Manufactured by Eaton-Airflex, these clutches are actuated by air for seamless operation, making them ideal for a wide range of industrial uses.
Product Specifications
Note 0
Refers to basic part number only and does not include the rotorseal and hose. When ordering, specify shaft diameter.Refer to Rotorseal Section for mounting and dimension information.Part numbers for shaft diameters:1.250 thru 1.500 in - 70x135All other diameters - 70x45
Specifications Actuation
Air Applied
Specifications Available For Shaft Diameter
1.250 thru 2.000 in | 1.250 thru 2.000 mm

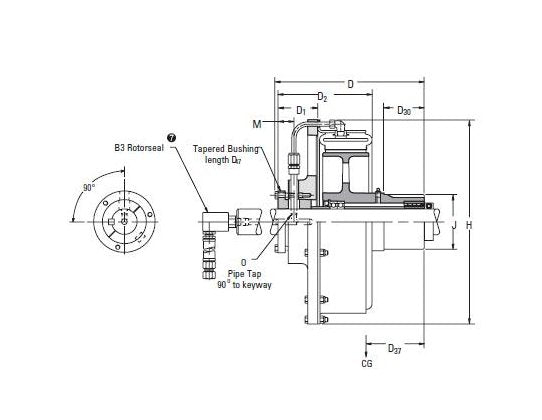

Specifications Dimension D
10.75 in | 273 mm
Specifications Dimension D1
2.69 in | 68 mm
Specifications Dimension D2
6.69 in | 170 mm
Specifications Dimension D30
3.25 in | 83 mm
Specifications Dimension D33
0.54 in | 14 mm
Specifications Dimension D37
6.08 in | 154 mm
Specifications Dimension D47
2.50 in | 64 mm
Specifications Dimension H
10.75 in | 273 mm
Specifications Dimension J
4.252 in | 108.0 mm
Specifications Dimension M
1.38 in | 35 mm
Specifications Drum
0.6 | 0.03 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Speed
1350 rpm | 1800 rpm
Specifications Shaft Diameter
1.250 in | 1.875 in
Specifications Size
6CB200
Specifications Torque Rating 75 Psi55 Bar
2040 lb·in | 231 Nm
Specifications Weight
42 lb | 19 kg
Specifications Wk2 Element Spider J
2.0 lb·ft² | 0.08
