Eaton-Airflex CB Clutches - Bearing Mounted Arrangement, Size 12CB350
Eaton-Airflex CB Clutches - Bearing Mounted Arrangement, Size 12CB350
SKU:CLU-ef548b
Trust Eaton-Airflex CB Clutches for robust reliability in high-demand industrial applications. Torque Rating: 13300 lb·in | 1500 Nm. Shaft Diameter: 1.750 - 2.500 in.
Regular price
$2,800.00
Regular price
Sale price
$2,800.00
Unit price
per
Initiate Order
Eaton-Airflex CB Clutches - Bearing Mounted Arrangement, Size 12CB350
$2,800.00
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Clutches - Bearing Mounted Arrangement, Size 12CB350
$2,800.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB Clutches with Bearing Mounted Arrangement are expertly crafted for reliable clutch or brake service in demanding industrial applications. With a torque rating of 13300 lb·in | 1500 Nm, these clutches excel in high-speed operations, cyclic functions, coupling, and power transmission. Designed for shaft diameters ranging from 1.750 to 2.500 inches, these clutches boast precision dimensions, robust build quality, and are manufactured by Eaton-Airflex, ensuring top-notch performance and durability.
Product Specifications
Note 0
Refers to basic part number only and does not include the rotorseal and hose. When ordering, specify shaft diameter.Refer to Rotorseal Section for mounting and dimension information.Part numbers for shaft diameters:1.250 thru 1.500 in - 70x135All other diameters - 70x45
Specifications Actuation
Air Applied
Specifications Available For Shaft Diameter
1.750 thru 2.500 in | 1.750 thru 2.500 mm

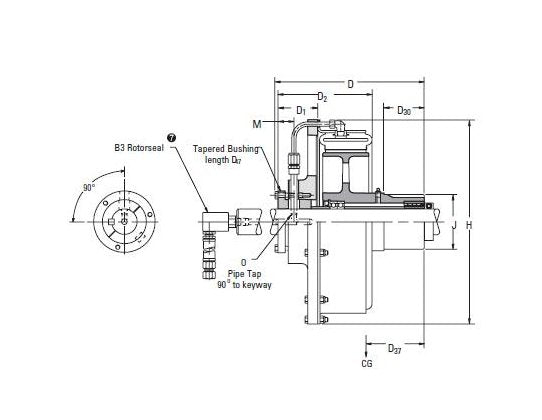

Specifications Dimension D
13.69 in | 348 mm
Specifications Dimension D1
3.44 in | 87 mm
Specifications Dimension D2
9.19 in | 233 mm
Specifications Dimension D30
3.50 in | 89 mm
Specifications Dimension D33
0.73 in | 19 mm
Specifications Dimension D37
8.28 in | 210 mm
Specifications Dimension D47
2.88 in | 73 mm
Specifications Dimension H
17.63 in | 448 mm
Specifications Dimension J
4.752 in | 120.7 mm
Specifications Dimension M
1.38 in | 35 mm
Specifications Drum
4.9 | 0.21 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Speed
1000 rpm | 1500 rpm
Specifications Shaft Diameter
1.6252.375 in
Specifications Size
12CB350
Specifications Torque Rating 75 Psi55 Bar
13300 lb·in | 1500 Nm
Specifications Weight
120 lb | 54 kg
Specifications Wk2 Element Spider J
22 lb·ft² | 0.92
