Eaton-Airflex CB Drum Clutch/Brake Assembly
Eaton-Airflex CB Drum Clutch/Brake Assembly
SKU:CLU-32e18c
Dependable Eaton-Airflex CB Drum Clutch/Brake Assembly for precise industrial applications.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Eaton-Airflex CB Drum Clutch/Brake Assembly
$7,499.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex CB Drum Clutch/Brake Assembly
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex CB Mounting Components - Integral Drums and Hubs are expertly crafted to deliver reliable clutch or brake functionality in demanding industrial environments. Engineered for high-speed, cyclic operations and efficient power transmission, these assemblies ensure consistent performance and durability. With a specified Size of 24CB500, Weight of 437 lb, and advanced Inertia capabilities, these components are designed to meet the rigorous requirements of industrial applications. The incorporation of dimensions for Minimum and Maximum Bore sizes, along with precision manufacturing by Eaton-Airflex, guarantees a high-quality, compliant solution for industrial needs.
Product Specifications

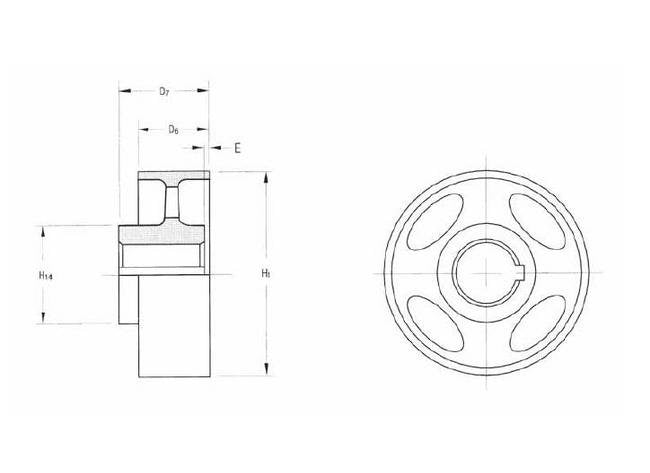

Specifications Dimension D6
5.75 in | 146 mm
Specifications Dimension D7
8.50 in | 216 mm
Specifications Dimension H1
24 in | 610 mm
Specifications Dimension H14
10.50 in | 267 mm
Specifications Inertia
129 lb·ft² | 5.42 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
6.00 in | 152 mm
Specifications Minimum Bore
4.50 in | 114 mm
Specifications Size
24CB500
Specifications Weight
437 lb | 198 kg
