Eaton-Airflex DBB Airflex Spring-Applied Disc Brakes

Eaton-Airflex DBB Airflex Spring-Applied Disc Brakes

CLU-1ccfc5

Eaton-Airflex DBB Disc Brakes: High torque, low maintenance, ideal for bottling equipment, power shovels, conveyors, and more.

$2,399.99
$2,399.99
Sale

Initiate Order

Eaton-Airflex DBB Airflex Spring-Applied Disc Brakes

Eaton-Airflex DBB Airflex Spring-Applied Disc Brakes

$2,399.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex DBB Airflex Spring-Applied Disc Brakes

Eaton-Airflex DBB Airflex Spring-Applied Disc Brakes

$2,399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eaton-Airflex DBB Airflex Spring-Applied Disc Brakes are designed for high-demand applications, offering equal torque in both directions of rotation. Featuring a low inertia friction disc assembly, these brakes provide superior performance in high cyclic operations. With optional split friction discs and long-wearing PolyPak seals, these brakes ensure durability and minimal maintenance needs. These brakes are ideal for bottling equipment, power shovels, conveyors, shears, and power presses.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

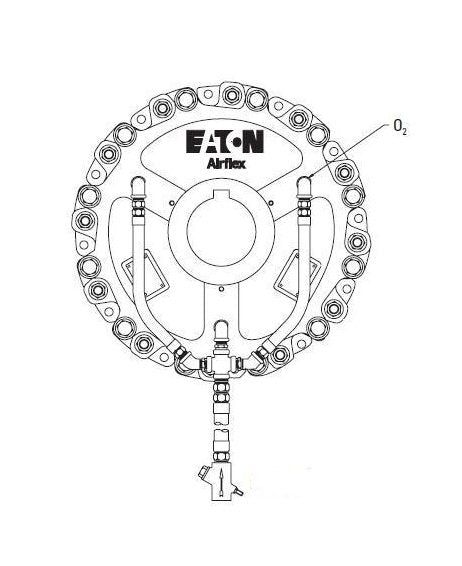

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
21.85 in | 555 mm
Specifications Dimension D1
12.00 in | 305 mm
Specifications Dimension D31
2.45 in | 62 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
1.25 in | 32 mm
Specifications Dimension H16
16.50 in | 419 mm
Specifications Dimension J
44.750 in | 1136.7 mm
Specifications Dimension J1
36.375 in | 923.9 mm
Specifications Dimension J2
45.01 in | 1143 mm
Specifications Dimension O2
3/4-14 NPT
Specifications Dimension W4
19.73 in | 501 mm
Specifications Disc Gear Inertia
837 lb·ft² | 35.15 kg·m²
Specifications Disc Gear Weight
1087 lb | 493 kg
Specifications Dynamic Torque Rating
1153000 lb·in | 130282 Nm
Specifications Housing Weight
3280 lb | 1488 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
10.88 in | 276 mm
Specifications Maximum Speed
950 rpm
Specifications Minimum Bore
8.38 in | 213 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
338DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
