Enhance performance with Eaton-Airflex DBB Brakes: low inertia, high torque capacity, and superior reliability for demanding applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Eaton-Airflex DBB Brakes
$2,599.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex DBB Brakes
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Elevate your operational performance with Eaton-Airflex DBB Brakes, featuring spring applied, pressure released, disc style brakes that deliver equal torque in both directions. Ideal for high-demand applications, these brakes offer low inertia friction disc assembly, optional split friction discs, and long-wearing PolyPak seals. With dynamic torque ratings of 19400 lb·in | 2192 Nm and maximum speed of 3000 rpm, these brakes are engineered for efficiency and reliability. Customize torque levels by varying the quantity of springs to suit specific applications.
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

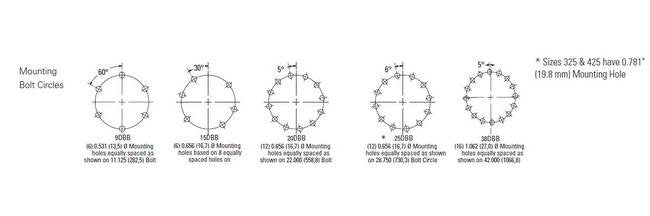

Tolerance +0.000/-0.003 in (+0.00/-0.08 mm)All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release

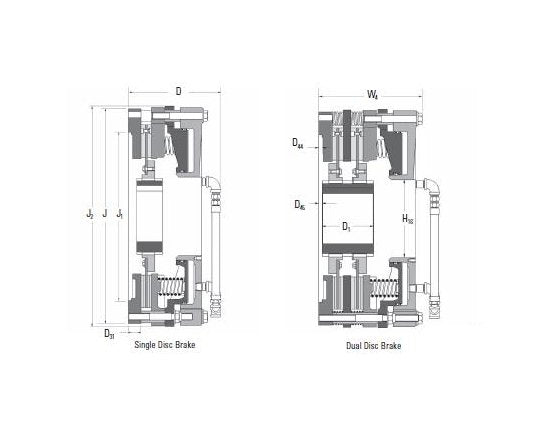

Specifications Dimension D
9.06 in | 202 mm
Specifications Dimension D1
5.25 in | 133 mm
Specifications Dimension D31
1.00 in | 25 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
0.00 in | 0 mm
Specifications Dimension H16
3.12 in | 79 mm
Specifications Dimension J
12.125 in | 308.0 mm
Specifications Dimension J1
8.375 in | 212.7 mm
Specifications Dimension J2
12.37 in | 314 mm

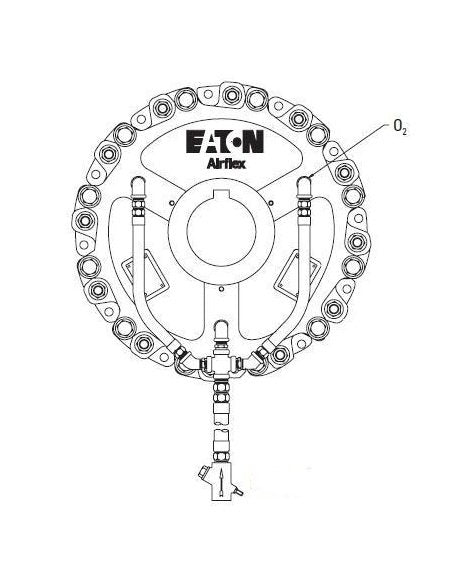

Specifications Dimension O2
3/8-18 NPT
Specifications Dimension W4
9.06 in | 230 mm
Specifications Disc Gear Inertia
1.83 lb·ft² | 0.07 kg·m²
Specifications Disc Gear Weight
27 lb | 12 kg
Specifications Dynamic Torque Rating
19400 lb·in | 2192 Nm
Specifications Housing Weight
135 lb | 36 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
2.63 in | 67 mm
Specifications Maximum Speed
3000 rpm
Specifications Minimum Bore
2.13 in | 54 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
309DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
