Eaton-Airflex DBB Brakes Model 120DBB
Eaton-Airflex DBB Brakes Model 120DBB
SKU:CLU-cc8a57
High-performance spring applied, pressure released disc brakes with low inertia friction disc assembly and PolyPak seals for reliable operation.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Eaton-Airflex DBB Brakes Model 120DBB
$2,399.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex DBB Brakes Model 120DBB
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex DBB Brakes Model 120DBB are advanced spring applied, pressure released, disc style brakes designed to deliver consistent torque in both directions. They feature a low inertia friction disc assembly that enhances performance in high cyclic applications. The optional split friction discs allow for easy maintenance without disrupting the drive system. With long-lasting, self-lubricating PolyPak seals, these brakes ensure reliable operation across various industrial applications such as bottling equipment, power shovels, conveyors, shears, and power presses.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

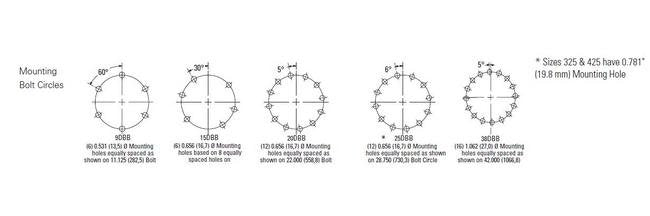

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
10.87 in | 276 mm
Specifications Dimension D1
3.00 in | 76 mm
Specifications Dimension D31
1.50 in | 38 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D45
1.00 in | 25 mm
Specifications Dimension H16
8.50 in | 216 mm
Specifications Dimension J
23.250 in | 590.6 mm
Specifications Dimension J1
18.250 in | 463.5 mm
Specifications Dimension J2
23.82 in | 605 mm

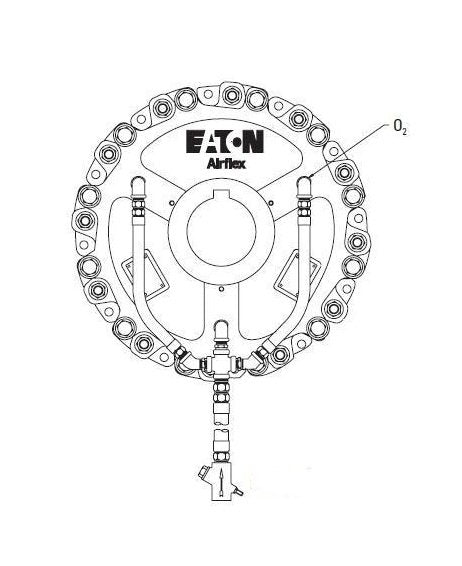

Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
9.37 in | 238 mm
Specifications Disc Gear Inertia
17 lb·ft² | 0.71 kg·m²
Specifications Disc Gear Weight
40 lb | 18 kg
Specifications Dynamic Torque Rating
53500 lb·in | 6040 Nm
Specifications Housing Weight
385 lb | 175 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
5.88 in | 149 mm
Specifications Maximum Speed
1850 rpm
Specifications Minimum Bore
3.00 in | 76 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
120DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
