Eaton-Airflex DBB Brakes Model 125DBB
Eaton-Airflex DBB Brakes Model 125DBB
SKU:CLU-0d68eb
High-performance Eaton-Airflex DBB Brakes for demanding applications. Low inertia, long-wearing, and reliable. Ideal for bottling equipment, power shovels, and more.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Eaton-Airflex DBB Brakes Model 125DBB
$799.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex DBB Brakes Model 125DBB
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex DBB Brakes Model 125DBB are spring applied, pressure released disc brakes designed for high-performance applications. Featuring a low inertia friction disc assembly, these brakes deliver equal torque in both directions of rotation, ensuring reliability and safety. With optional split friction discs and long-wearing self-lubricating PolyPak seals, maintenance is minimized, making them ideal for bottling equipment, power shovels, conveyors, shears, and power presses.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

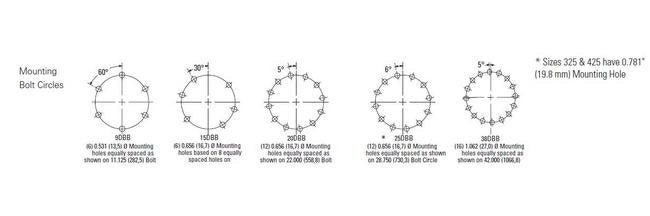

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
12.07 in | 307 mm
Specifications Dimension D1
3.50 in | 89 mm
Specifications Dimension D31
1.75 in | 44 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
0.75 in | 19 mm
Specifications Dimension H16
11.50 in | 292 mm
Specifications Dimension J
30.630 in | 778.0 mm
Specifications Dimension J1
24.375 in | 619.1 mm
Specifications Dimension J2
30.89 in | 785 mm

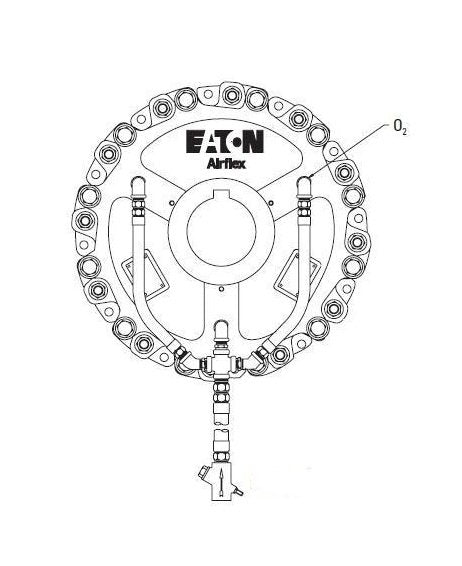

Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
10.57 in | 268 mm
Specifications Disc Gear Inertia
47 lb·ft² | 1.97 kg·m²
Specifications Disc Gear Weight
78 lb | 35 kg
Specifications Dynamic Torque Rating
115300 lb·in | 13017 Nm
Specifications Housing Weight
705 lb | 320 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
7.50 in | 191 mm
Specifications Maximum Speed
1400 rpm
Specifications Minimum Bore
3.88 in | 99 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
125DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
