The Eaton-Airflex DBB Brakes in Model 138DBB are precision-engineered disc style brakes designed for high-demand applications. Featuring a low inertia friction disc assembly, these brakes offer superior performance and thermal capacities. With optional split friction discs and self-lubricating PolyPak seals, they ensure longevity and reduced maintenance needs. Ideal for bottling equipment, power shovels, and conveyors, these brakes provide reliable torque in both directions of rotation, meeting the stringent standards of institutional and government buyers.
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

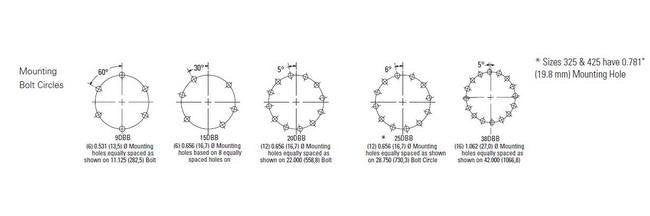

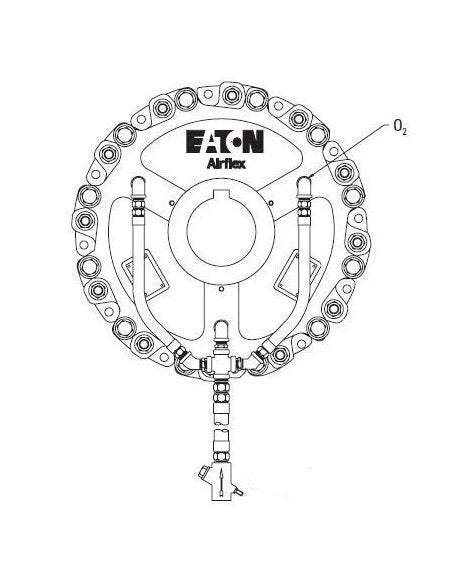

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
16.25 in | 413 mm
Specifications Dimension D1
5.00 in | 127 mm
Specifications Dimension D31
2.45 in | 62 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
1.25 in | 32 mm
Specifications Dimension H16
16.50 in | 419 mm
Specifications Dimension J
44.750 in | 1136.7 mm
Specifications Dimension J1
36.375 in | 923.9 mm
Specifications Dimension J2
45.01 in | 1143 mm
Specifications Dimension O2
3/4-14 NPT
Specifications Dimension W4
14.25 in | 362 mm
Specifications Disc Gear Inertia
287 lb·ft² | 12.05 kg·m²
Specifications Disc Gear Weight
203 lb | 92 kg
Specifications Dynamic Torque Rating
420000 lb·in | 47418 Nm
Specifications Housing Weight
1955 lb | 887 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
11.00 in | 279 mm
Specifications Maximum Speed
950 rpm
Specifications Minimum Bore
6.00 in | 152 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
138DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
