Eaton-Airflex DBB Disc Style Brakes

Eaton-Airflex DBB Disc Style Brakes

CLU-4fc51c

High-performance Eaton-Airflex DBB Disc Style Brakes with low inertia friction disc assembly for superior stopping power and reliability.

$2,499.99
$2,499.99
Sale

Initiate Order

Eaton-Airflex DBB Disc Style Brakes

Eaton-Airflex DBB Disc Style Brakes

$2,499.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex DBB Disc Style Brakes

Eaton-Airflex DBB Disc Style Brakes

$2,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eaton-Airflex DBB Disc Style Brakes are precision-engineered for high-performance applications, offering equal torque in both directions of rotation. Featuring a low inertia friction disc assembly, these brakes provide optimal stopping power and reliability. With optional split friction discs and durable PolyPak seals, these brakes ensure long-term efficiency and minimal maintenance. Ideal for bottling equipment, power shovels, conveyors, and more, the DBB brakes deliver unmatched performance and safety.

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release

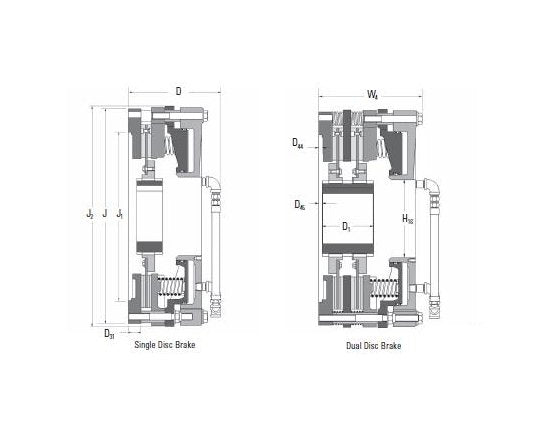

Specifications Dimension D
13.04 in | 331 mm
Specifications Dimension D1
6.27 in | 159 mm
Specifications Dimension D31
1.50 in | 38 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D45
1.00 in | 25 mm
Specifications Dimension H16
8.50 in | 216 mm

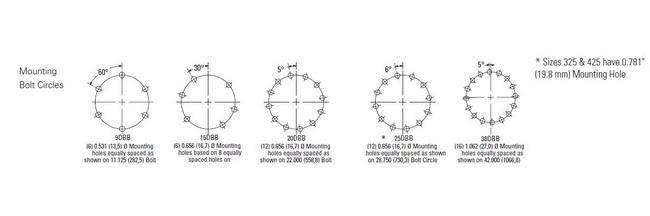

Specifications Dimension J
23.250 in | 590.6 mm
Specifications Dimension J1
18.250 in | 463.5 mm
Specifications Dimension J2
23.82 in | 605 mm

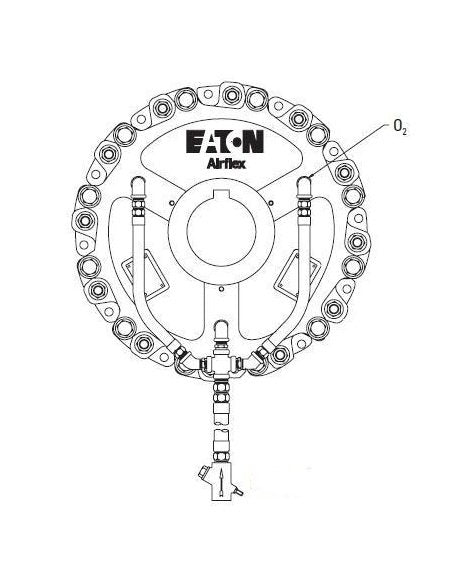

Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
11.54 in | 292 mm
Specifications Disc Gear Inertia
33 lb·ft² | 1.39 kg·m²
Specifications Disc Gear Weight
67 lb | 30 kg
Specifications Dynamic Torque Rating
101500 lb·in | 11459 Nm
Specifications Housing Weight
487 lb | 221 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
6.00 in | 152 mm
Specifications Maximum Speed
1850 rpm
Specifications Minimum Bore
3.75 in | 95 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
220DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
