Eaton-Airflex DBB Disc Style Brakes
Eaton-Airflex DBB Disc Style Brakes
SKU:CLU-b17922
High-performance Eaton-Airflex DBB Disc Style Brakes with low inertia friction discs for precise torque control in demanding applications.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Eaton-Airflex DBB Disc Style Brakes
$1,599.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex DBB Disc Style Brakes
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex DBB Disc Style Brakes are designed for high-demand applications, featuring a low inertia friction disc assembly that reduces overall inertia for superior performance. With optional split friction discs and long-wearing PolyPak seals, these brakes offer reliability and ease of maintenance. Ideal for bottling equipment, power shovels, conveyors, shears, and power presses, the DBB brakes provide precise torque control and efficient operation in diverse industrial settings.
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

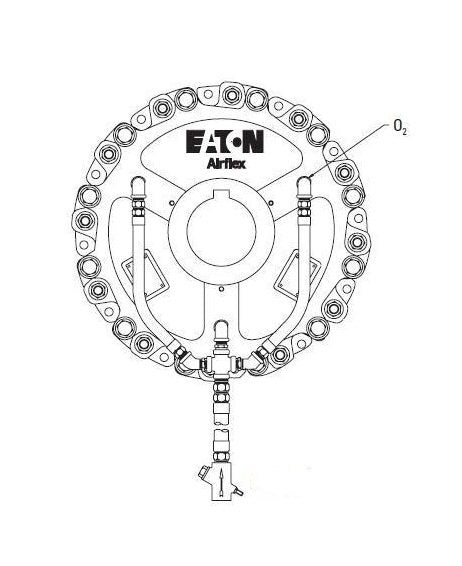

Tolerance +0.000/-0.003 in (+0.00/-0.08 mm)All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
4.38 in | 242 mm
Specifications Dimension D1
2.88 in | 73 mm
Specifications Dimension D31
1.47 in | 37 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D45
0.38 in | 10 mm
Specifications Dimension H16
6.00 in | 152 mm
Specifications Dimension J
18.375 in | 466.7 mm
Specifications Dimension J1
14.375 in | 365.1 mm
Specifications Dimension J2
18.94 in | 481 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
7.52 in | 191 mm
Specifications Disc Gear Inertia
5 lb·ft² | 0.21 kg·m²
Specifications Disc Gear Weight
35 lb | 16 kg
Specifications Dynamic Torque Rating
30000 lb·in | 3387 Nm
Specifications Housing Weight
225 lb | 102 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
2.50 in | 64 mm
Specifications Maximum Speed
2400 rpm
Specifications Minimum Bore
2.13 in | 54 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
115DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
