The Eaton-Airflex DBB Disc Style Spring-Applied Brakes are meticulously engineered for high-performance applications, offering equal torque in both rotation directions. These brakes feature a low inertia friction disc assembly with the option for split friction discs, enhancing overall efficiency. Designed with precision and durability in mind, they come with long-wearing self-lubricating PolyPak seals to prevent premature failures. Ideal for bottling equipment, power shovels, conveyors, shears, and power presses, these brakes provide exceptional reliability and performance in demanding environments.

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

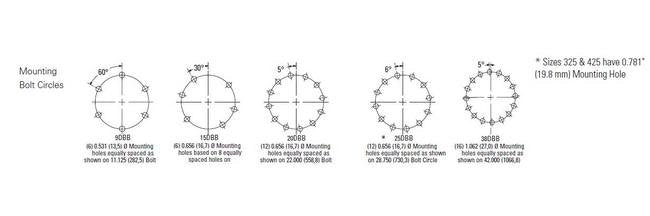

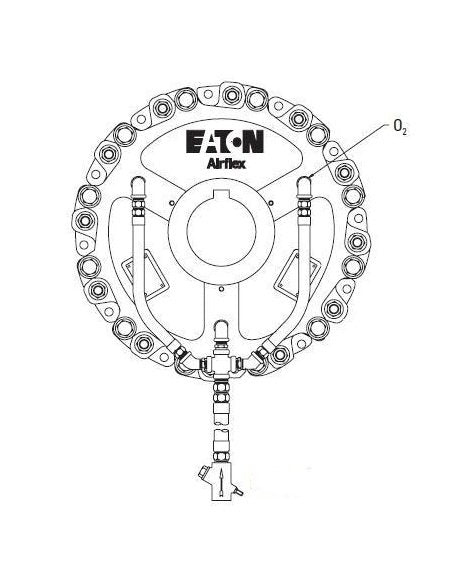

Tolerance +0.000/-0.003 in (+0.00/-0.08 mm)All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
11.16 in | 283 mm
Specifications Dimension D1
4.38 in | 111 mm
Specifications Dimension D31
1.47 in | 37 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D45
0.38 in | 10 mm
Specifications Dimension H16
6.00 in | 152 mm
Specifications Dimension J
18.375 in | 466.7 mm
Specifications Dimension J1
14.375 in | 365.1 mm
Specifications Dimension J2
18.94 in | 481 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
9.23 in | 235 mm
Specifications Disc Gear Inertia
10 lb·ft² | 0.42 kg·m²
Specifications Disc Gear Weight
64 lb | 29 kg
Specifications Dynamic Torque Rating
57000 lb·in | 6435 Nm
Specifications Housing Weight
275 lb | 125 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
4.25 in | 108 mm
Specifications Maximum Speed
2400 rpm
Specifications Minimum Bore
3.06 in | 78 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
215DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
