The Eaton-Airflex DBB Spring-Applied Disc Brakes are meticulously engineered for high-performance applications, offering equal torque in both directional rotations. These brakes boast a low inertia friction disc assembly with optional split friction discs, reducing overall inertia and allowing for easy maintenance. With long-wearing PolyPak seals and a dynamic torque rating of 392,000 lb·in, these brakes are ideal for bottling equipment, power shovels, conveyors, shears, and power presses.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

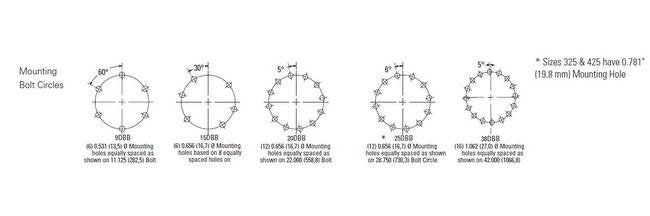

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
19.00 in | 483 mm
Specifications Dimension D1
12.00 in | 305 mm
Specifications Dimension D31
1.75 in | 44 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
0.75 in | 19 mm
Specifications Dimension H16
11.50 in | 292 mm
Specifications Dimension J
30.630 in | 778.0 mm
Specifications Dimension J1
24.375 in | 619.1 mm
Specifications Dimension J2
30.89 in | 785 mm

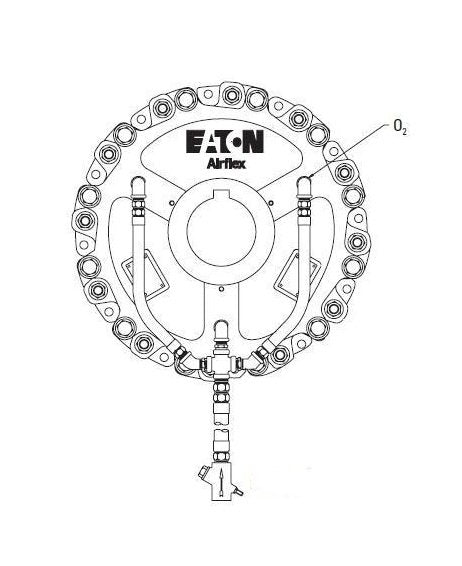

Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
17.50 in | 445 mm
Specifications Disc Gear Inertia
185 lb·ft² | 7.77 kg·m²
Specifications Disc Gear Weight
280 lb | 127 kg
Specifications Dynamic Torque Rating
392000 lb·in | 44067 Nm
Specifications Housing Weight
1250 lb | 567 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
7.50 in | 191 mm
Specifications Maximum Speed
1400 rpm
Specifications Minimum Bore
5.88 in | 149 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
425DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
