Eaton-Airflex DC Clutches and Brakes are versatile elements that function seamlessly as pressure actuated clutches or brakes. Available in single and multiple disc designs, these elements offer a favorable torque to size ratio, making them physically smaller yet powerful. The low inertia friction disc assembly reduces overall inertia, while optional split friction discs allow convenient maintenance without disrupting the drive system. These long-wearing elements feature self-lubricating PolyPak seals, ensuring durability and eliminating premature twisting failure. Ideal for use in Power Presses, Tension Brakes, and Emergency Stop Brakes on Unwind Stands, these DC elements from Eaton-Airflex boast reliability, performance, and ease of maintenance.
Product Specifications
Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.

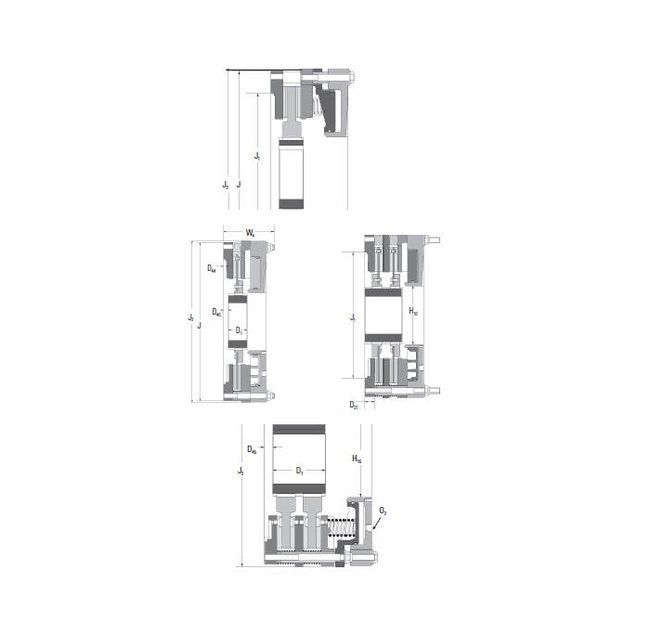

Specifications Actuation
Air (DC)
Specifications Bolt Circle
12.25 in | 311 mm
Specifications Dimension D1
9.31 in | 236 mm
Specifications Dimension D31
1.75 in | 44 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D46
0.00 in | 0 mm
Specifications Dimension H16
11.50 in | 292 mm
Specifications Dimension J
30.630 in | 778.0 mm
Specifications Dimension J1
24.375 in | 619.1 mm
Specifications Dimension J2
30.58 in | 777 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Disc And Gear Weight
403 lb | 183 kg
Specifications Disc Gear Inertia
140 lb·ft² | 5.90 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
480000 lb·in | 54190 Nm
Specifications Gear Part Number
416623
Specifications Housing Inertia
501 lb·ft² | 21.11 kg·m²
Specifications Housing Weight
821 lb | 372 kg
Specifications H Number
4
Specifications H Size
3/8-16NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
6.88 in | 175 mm
Specifications Maximum Speed Of Disc
1400 rpm
Specifications Maximum Speed Of Element
650 rpm
Specifications Minimum Bore
6.25 in | 159 mm
Specifications Number Of Friction Discs
3
Specifications Size
325DC
Specifications W4
14.50 in | 368 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
