The Eaton-Airflex DC Clutches and Brakes in the 115DC model offer exceptional torque to size ratio, making them ideal for various industrial applications like Power Presses, Tension Brakes, and Emergency Stop Brakes on Unwind Stands. These clutches and brakes feature a low inertia friction disc assembly, PolyPak seals for longevity and self-lubrication, and optional split friction discs for easy maintenance without disrupting the drive system. With a dynamic torque rating of 41000 lb.in (4630 Nm) at 75 psi, maximum speeds up to 2400 rpm, and precise dimensions, these DC elements deliver reliable performance in demanding environments.

Product Specifications

Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

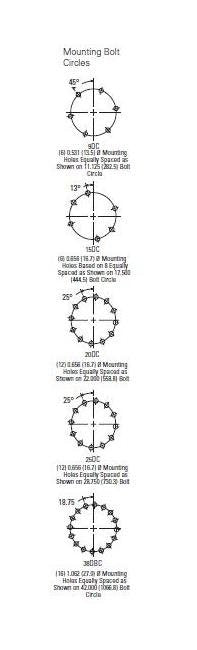

Specifications Bolt Circle
6.50 in | 165 mm

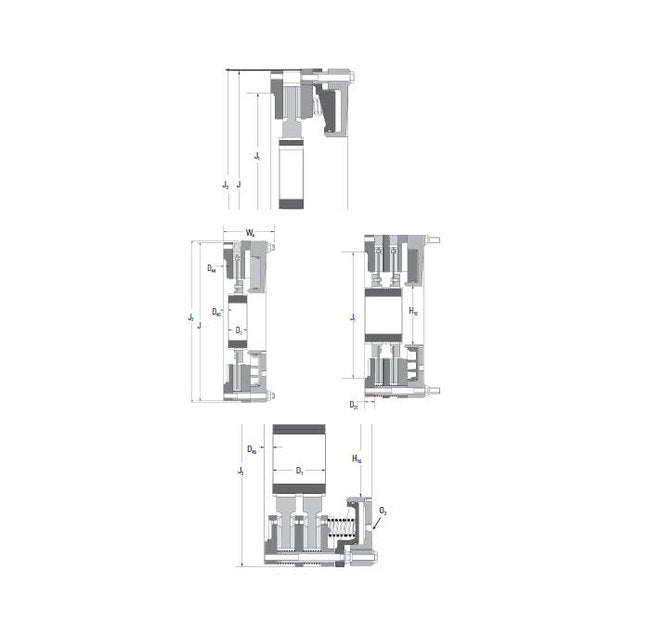

Specifications Dimension D1
2.88 in | 73 mm
Specifications Dimension D31
1.47 in | 37 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D46
0.38 in | 10 mm
Specifications Dimension H16
6.00 in | 152 mm
Specifications Dimension J
18.375 in | 466.7 mm
Specifications Dimension J1
14.375 in | 365.1 mm
Specifications Dimension J2
18.94 in | 481 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Disc And Gear Weight
35 lb | 16 kg
Specifications Disc Gear Inertia
5 lb·ft² | 0.21 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
41000 lb·in | 4630 Nm
Specifications Gear Part Number
415454
Specifications Housing Inertia
55 lb·ft² | 2.32 kg·m²
Specifications Housing Weight
170 lb | 77 kg
Specifications H Number
3
Specifications H Size
3/8-16NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
3.98 in | 98 mm
Specifications Maximum Speed Of Disc
2400 rpm
Specifications Maximum Speed Of Element
1050 rpm
Specifications Minimum Bore
2.75 in | 70 mm
Specifications Number Of Friction Discs
1
Specifications Size
115DC
Specifications W4
7.00 in | 178 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
