Eaton-Airflex DC Clutches and Brakes
Eaton-Airflex DC Clutches and Brakes
SKU:CLU-fecee3
Versatile Eaton-Airflex DC Clutches and Brakes with exceptional torque-to-size ratios and low inertia friction disc assemblies for power presses and tension brakes.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Eaton-Airflex DC Clutches and Brakes
$3,499.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex DC Clutches and Brakes
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex DC Clutches and Brakes are versatile elements that excel as both pressure actuated clutches and brakes, offering exceptional torque-to-size ratios. Available in single and multiple disc designs, these elements feature low inertia friction disc assemblies and optional split friction discs, providing efficient operation and easy maintenance. With long-wearing self-lubricating PolyPak seals and a range of sizes and torque ratings, these DC elements are ideal for power presses, tension brakes, and emergency stop brakes on unwind stands.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

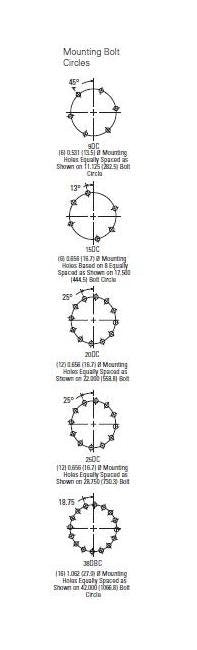

Specifications Bolt Circle
17.50 in | 445 mm

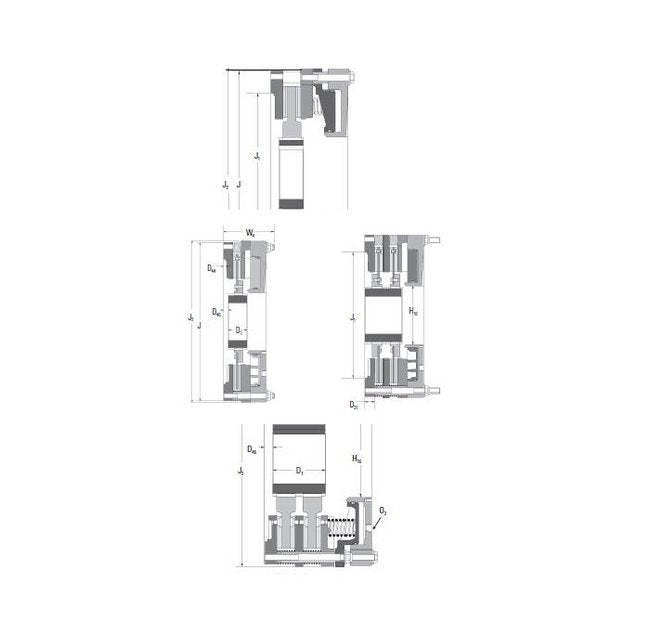

Specifications Dimension D1
5.00 in | 127 mm
Specifications Dimension D31
2.45 in | 62 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D46
1.25 in | 32 mm
Specifications Dimension H16
16.50 in | 419 mm
Specifications Dimension J
44.750 in | 1136.7 mm
Specifications Dimension J1
36.375 in | 923.9 mm
Specifications Dimension J2
44.86 in | 1139 mm

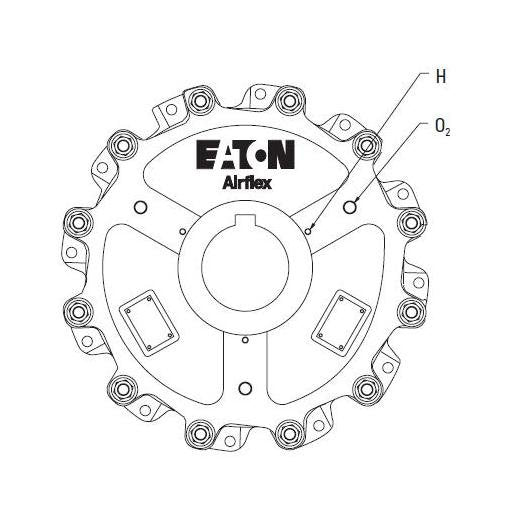

Specifications Dimension O2
3/4-14 NPT
Specifications Disc And Gear Weight
431 lb | 187 kg
Specifications Disc Gear Inertia
287 lb·ft² | 12.09 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
560000 lb·in | 63220 Nm
Specifications Gear Part Number
416068
Specifications Housing Inertia
2031 lb·ft² | 85.59 kg·m²
Specifications Housing Weight
1568 lb | 711 kg
Specifications H Number
4
Specifications H Size
1/2-13NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
10.50 in | 267 mm
Specifications Maximum Speed Of Disc
950 rpm
Specifications Maximum Speed Of Element
450 rpm
Specifications Minimum Bore
6.75 in | 171 mm
Specifications Number Of Friction Discs
1
Specifications Size
138DC
Specifications W4
13.50 in | 343 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
