Eaton-Airflex DC Clutches and Brakes, Size 220DC

Eaton-Airflex DC Clutches and Brakes, Size 220DC

CLU-6ab08d

Compact Eaton-Airflex DC Clutches and Brakes for power presses and tension brakes. High torque, low inertia design for reliable performance.

$2,599.99
$2,599.99
Sale

Initiate Order

Eaton-Airflex DC Clutches and Brakes, Size 220DC

Eaton-Airflex DC Clutches and Brakes, Size 220DC

$2,599.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex DC Clutches and Brakes, Size 220DC

Eaton-Airflex DC Clutches and Brakes, Size 220DC

$2,599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eaton-Airflex DC Clutches and Brakes in size 220DC are versatile pressure actuated elements suitable for various applications including power presses, tension brakes, and emergency stop brakes on unwind stands. These elements boast a favorable torque to size ratio, compact design, low inertia friction disc assembly, and optional split friction discs for easy maintenance. With long-wearing, self-lubricating PolyPak seals, they ensure reliable performance and longevity. Designed by Eaton-Airflex, a trusted manufacturer, these clutches and brakes deliver dynamic torque and maximum speeds efficiently, making them an ideal choice for industrial settings.

Product Specifications

Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

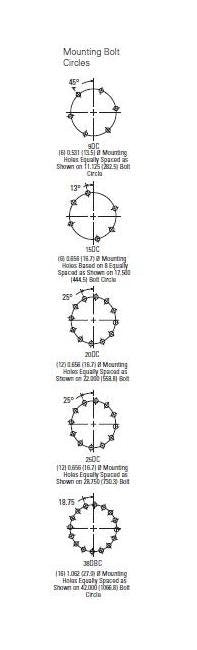

Specifications Bolt Circle
9.13 in | 232 mm

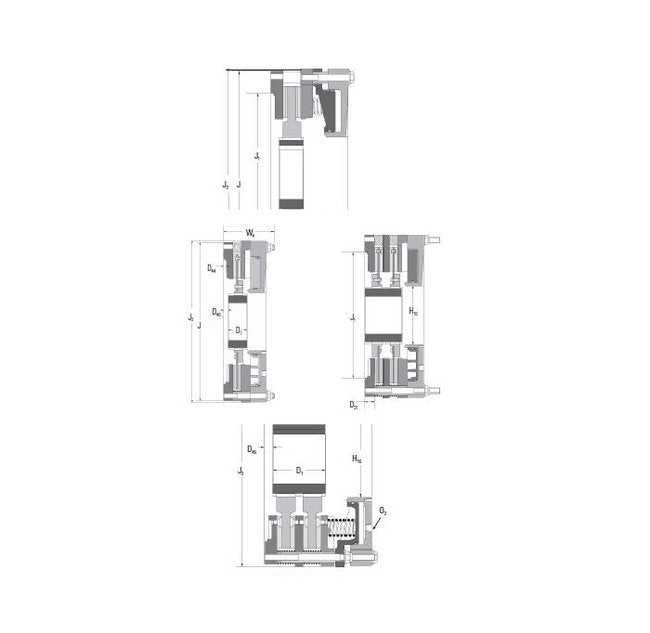

Specifications Dimension D1
5.63 in | 143 mm
Specifications Dimension D31
1.50 in | 38 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D46
0.00 in | 0 mm
Specifications Dimension H16
8.50 in | 216 mm
Specifications Dimension J
23.250 in | 590.6 mm
Specifications Dimension J1
18.250 in | 463.5 mm
Specifications Dimension J2
23.82 in | 605 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Disc And Gear Weight
145 lb | 66 kg
Specifications Disc Gear Inertia
33 lb·ft² | 1.39 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
154000 lb·in | 17390 Nm
Specifications Gear Part Number
415959
Specifications Housing Inertia
104 lb·ft² | 4.38 kg·m²
Specifications Housing Weight
297 lb | 135 kg

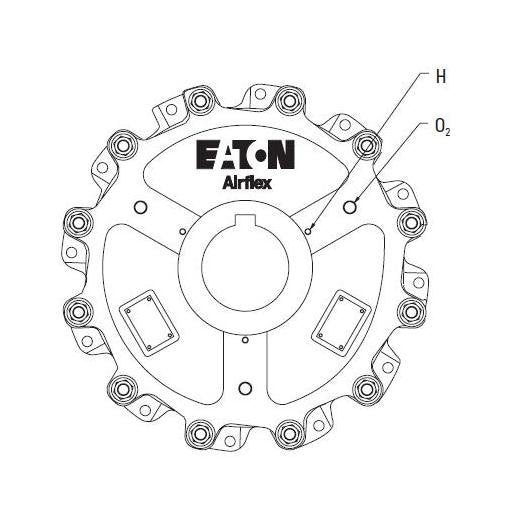

Specifications H Number
3
Specifications H Size
3/8-16NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
5.69 in | 143 mm
Specifications Maximum Speed Of Disc
1850 rpm
Specifications Maximum Speed Of Element
850 rpm
Specifications Minimum Bore
4.25 in | 108 mm
Specifications Number Of Friction Discs
2
Specifications Size
220DC
Specifications W4
11.50 in | 292 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
