Eaton-Airflex DC Clutches & Brakes - High Torque Disc Elements
$3,499.00
Quantity: 1
Claim Your Seller Account
Eaton-Airflex DC Clutches & Brakes - High Torque Disc Elements
$3,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial operations with Eaton-Airflex DC Clutches & Brakes. These versatile pressure actuated clutches/brakes offer a favorable torque-to-size ratio, low inertia friction disc assembly, and long-wearing PolyPak seals. Designed for power presses, tension brakes, and emergency stop systems, these elements ensure reliable performance under high torque applications. With sizes indicated by disc diameter and friction discs, the Eaton-Airflex DC clutches and brakes deliver dynamic torque ratings up to 1,680,000 lb·in for efficient operations.
Product Specifications
Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

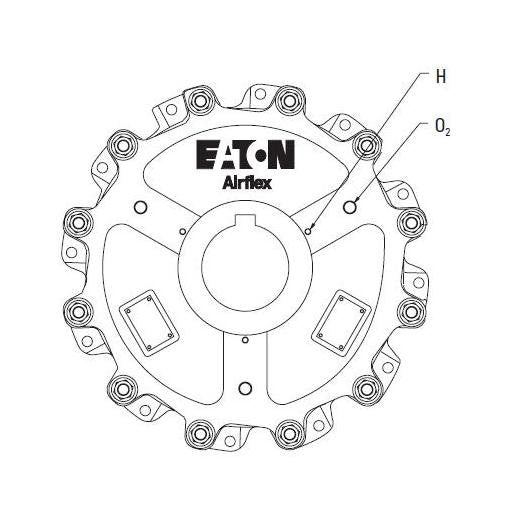

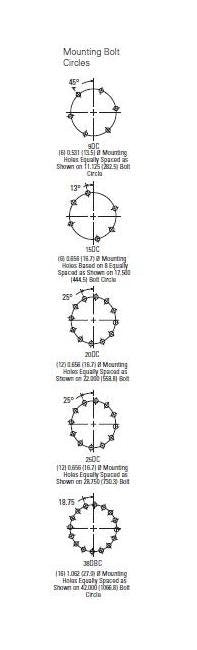

Specifications Bolt Circle
17.50 in | 445 mm

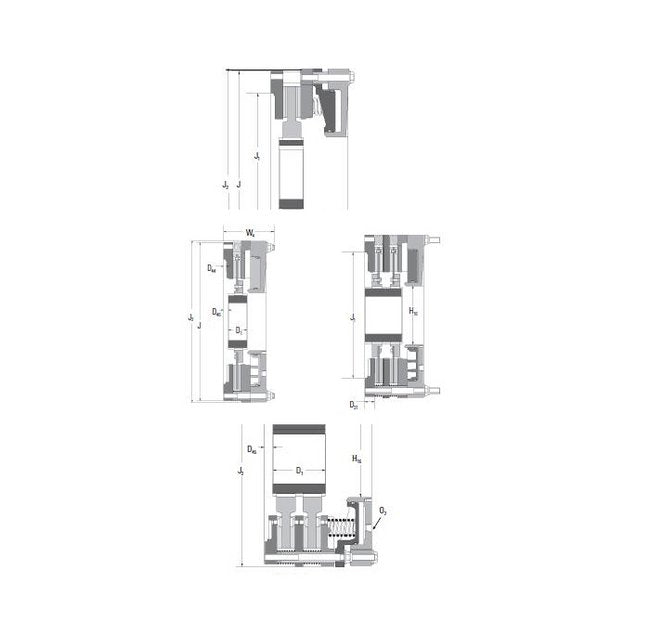

Specifications Dimension D1
13.00 in | 330 mm
Specifications Dimension D31
2.45 in | 62 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D46
0.00 in | 0 mm
Specifications Dimension H16
16.50 in | 419 mm
Specifications Dimension J
44.750 in | 1136.7 mm
Specifications Dimension J1
36.375 in | 923.9 mm
Specifications Dimension J2
44.86 in | 1139 mm
Specifications Dimension O2
3/4-14 NPT
Specifications Disc And Gear Weight
1087 lb | 493 kg
Specifications Disc Gear Inertia
837 lb·ft² | 35.27 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
1680000 lb·in | 189670 Nm
Specifications Gear Part Number
416241
Specifications Housing Inertia
2247 lb·ft² | 94.69 kg·m²
Specifications Housing Weight
1734 lb | 786 kg
Specifications H Number
4
Specifications H Size
1/2-13NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
9.75 in | 248 mm
Specifications Maximum Speed Of Disc
950 rpm
Specifications Maximum Speed Of Element
450 rpm
Specifications Minimum Bore
9.25 in | 235 mm
Specifications Number Of Friction Discs
3
Specifications Size
338DC
Specifications W4
19.50 in | 495 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
