Enhance your industrial machinery with the Eaton-Airflex DC Disc Clutches & Brakes. These pressure actuated elements offer a favorable torque to size ratio, low inertia friction disc assembly, and optional split friction discs for convenient maintenance. With long-wearing PolyPak seals, these elements are durable and self-lubricating. Suitable for applications like Power Presses, Tension Brakes, and Emergency Stop Brakes on Unwind Stands, these elements provide reliable performance and ease of use.
Product Specifications
Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

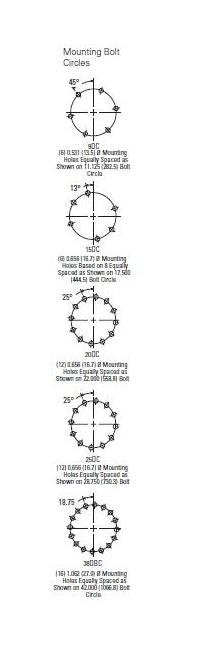

Specifications Bolt Circle
9.13 in | 232 mm

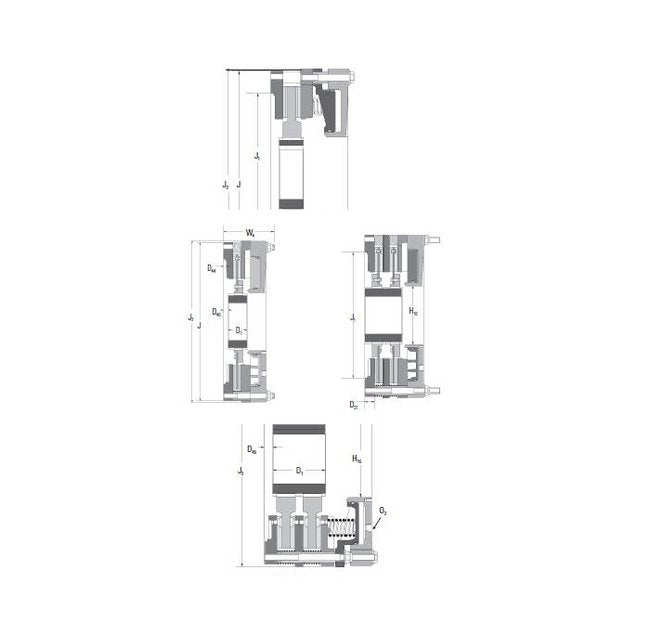

Specifications Dimension D1
3.00 in | 76 mm
Specifications Dimension D31
1.50 in | 38 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D46
0.75 in | 19 mm
Specifications Dimension H16
8.50 in | 216 mm
Specifications Dimension J
23.250 in | 590.6 mm
Specifications Dimension J1
18.250 in | 463.5 mm
Specifications Dimension J2
23.82 in | 605 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Disc And Gear Weight
35 lb | 77 kg
Specifications Disc Gear Inertia
35 lb·ft² | 0.72 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
77000 lb·in | 8690 Nm
Specifications Gear Part Number
415900
Specifications Housing Inertia
82 lb·ft² | 3.46 kg·m²
Specifications Housing Weight
235 lb | 107 kg

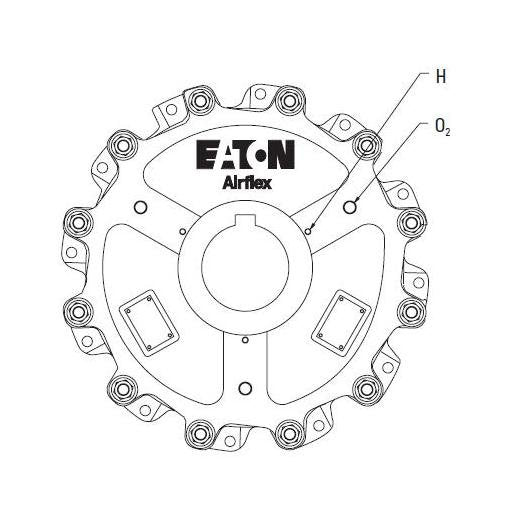

Specifications H Number
3
Specifications H Size
3/8-16NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
5.63 in | 143 mm
Specifications Maximum Speed Of Disc
1850 rpm
Specifications Maximum Speed Of Element
850 rpm
Specifications Minimum Bore
3.31 in | 97 mm
Specifications Number Of Friction Discs
1
Specifications Size
120DC
Specifications W4
8.00 in | 203 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
