Eaton-Airflex Disc Brake Model 220DBBS

Eaton-Airflex Disc Brake Model 220DBBS

CLU-cad1e6

Top-of-the-line Eaton-Airflex Disc Brake Model 220DBBS with low inertia friction disc assembly for superior performance in demanding applications.

$2,899.99
$2,899.99
Sale

Initiate Order

Eaton-Airflex Disc Brake Model 220DBBS

Eaton-Airflex Disc Brake Model 220DBBS

$2,899.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex Disc Brake Model 220DBBS

Eaton-Airflex Disc Brake Model 220DBBS

$2,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eaton-Airflex Disc Brake Model 220DBBS is a top-of-the-line spring applied, air release brake featuring a low inertia friction disc assembly that minimizes overall inertia, ensuring superior performance in high cyclic applications. With optional split friction discs and long-wearing PolyPak seals, this brake offers exceptional durability and maintenance ease. Designed for demanding applications like bottling equipment, power shovels, and power presses, the 220DBBS guarantees reliable and precise braking performance.

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Tolerance +0.120/-0.120 in (+3.00/-3.00 mm)Brake in disengaged position.Basic part number only. Does not include gear. Gear must be ordered separately with bore and keyway requirements.
Specifications Actuation
Spring Applied, Air Release

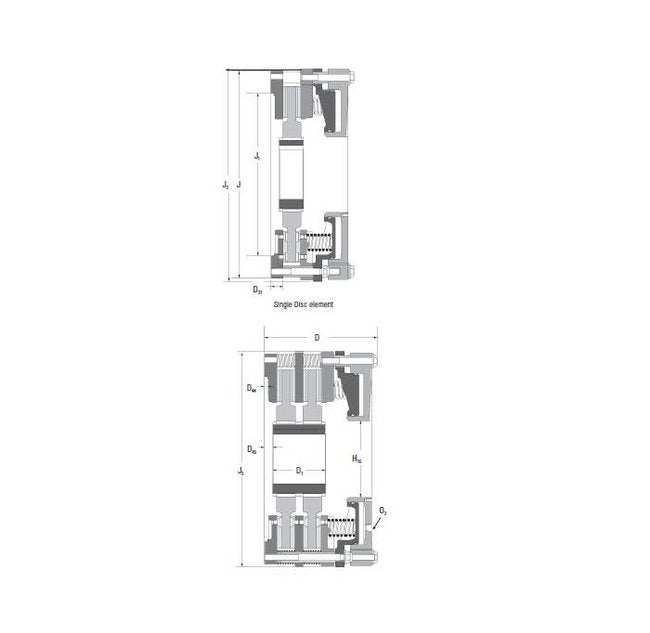

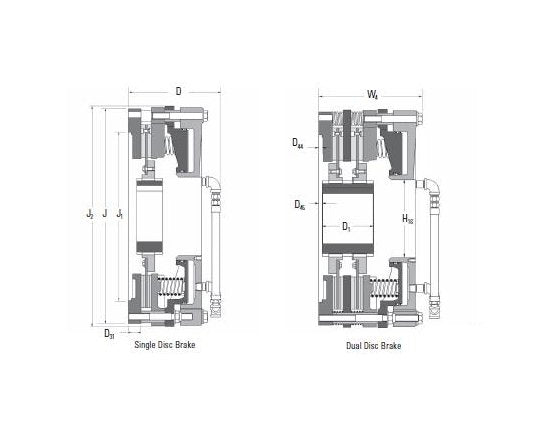

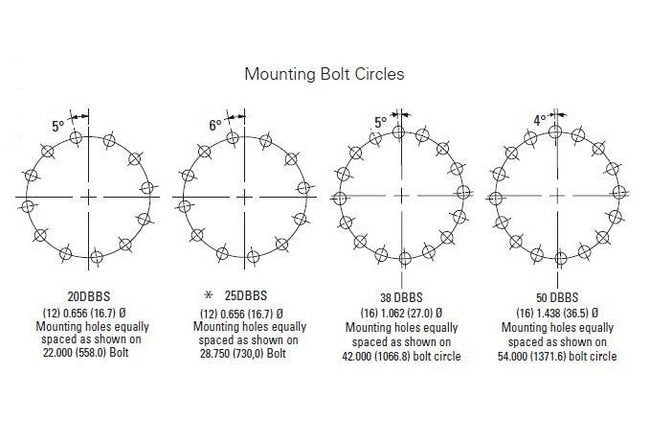

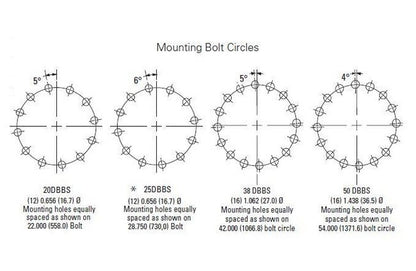

Specifications Dimension D
13.48 in | 342 mm
Specifications Dimension D1
6.27 in | 159 mm
Specifications Dimension D31
1.50 in | 38 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D45
1.00 in | 25 mm
Specifications Dimension H16
8.50 in | 216 mm
Specifications Dimension J
23.250 in | 590.6 mm
Specifications Dimension J1
18.250 in | 463.5 mm
Specifications Dimension J2
23.82 in | 605 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Disc Gear Inertia
65 lb·ft² | 274 kg·m²
Specifications Disc Gear Weight
232 lb | 105 kg
Specifications Dynamic Torque Rating
150000 lb·in | 16.935 Nm
Specifications Housing Weight
550 lb | 249 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
5.69 in | 145 mm
Specifications Maximum Speed
2200 rpm
Specifications Minimum Bore
4.25 in | 103 mm
Specifications Minimum Releasing Pressure
90 psi | 6.2 bar
Specifications Model
220DBBS
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
