Eaton-Airflex Disc Style DBB Brakes
$1,899.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex Disc Style DBB Brakes
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex Disc Style DBB Brakes are meticulously engineered for superior performance in high-demand applications. These spring-applied, pressure-released brakes offer equal torque in both rotational directions, ensuring reliable stopping power. With low inertia friction disc assemblies and split friction discs, maintenance is hassle-free without disrupting the drive system. These brakes feature durable PolyPak seals for long-lasting, self-lubricating operation. Ideal for bottling equipment, power shovels, conveyors, shears, and power presses, the Eaton-Airflex DBB Brakes boast dynamic torque ratings up to 7500 lb·in, making them a versatile and dependable choice for various industrial settings.
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

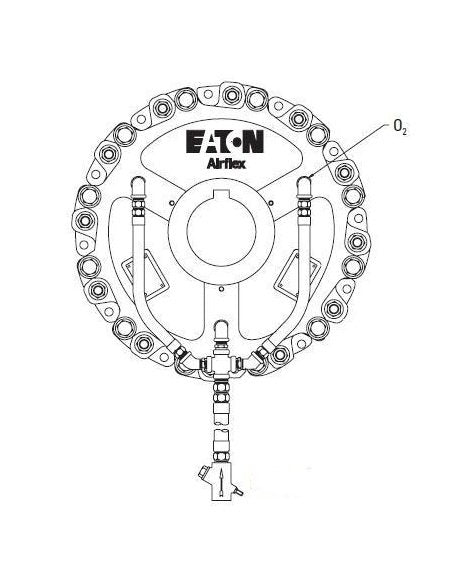

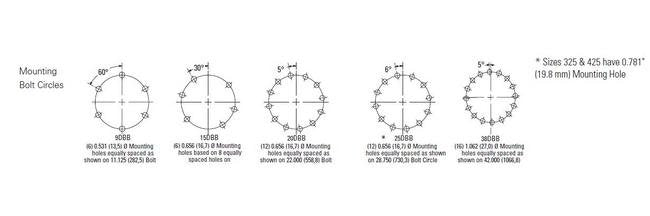

Tolerance +0.000/-0.003 in (+0.00/-0.08 mm)All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release

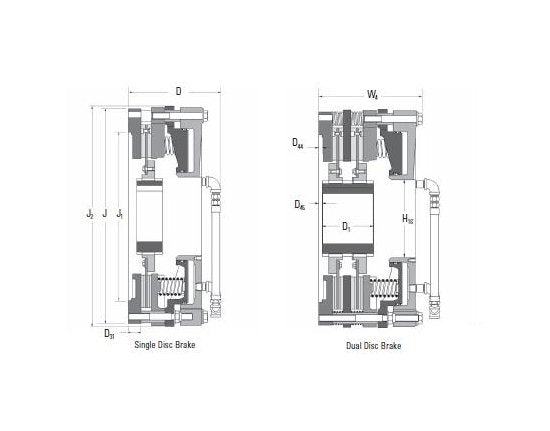

Specifications Dimension D
7.26 in | 184 mm
Specifications Dimension D1
1.75 in | 44 mm
Specifications Dimension D31
1.00 in | 25 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
0.50 in | 13 mm
Specifications Dimension H16
3.12 in | 79 mm
Specifications Dimension J
12.125 in | 308.0 mm
Specifications Dimension J1
8.375 in | 212.7 mm
Specifications Dimension J2
12.37 in | 314 mm
Specifications Dimension O2
3/8-18 NPT
Specifications Dimension W4
6.06 in | 154 mm
Specifications Disc Gear Inertia
0.50 lb·ft² | 0.02 kg·m²
Specifications Disc Gear Weight
9 lb | 4 kg
Specifications Dynamic Torque Rating
7500 lb·in | 847 Nm
Specifications Housing Weight
115 lb | 52 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
2.50 in | 64 mm
Specifications Maximum Speed
3000 rpm
Specifications Minimum Bore
1.68 in | 43 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
109DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
