Eaton-Airflex Dual Passage Rotorseals ADP
Eaton-Airflex Dual Passage Rotorseals ADP
SKU:CLU-d87790
Enhance industrial operations with Eaton-Airflex Dual Passage Rotorseals ADP for reliable, high-speed performance in heavy-duty applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Eaton-Airflex Dual Passage Rotorseals ADP
$299.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex Dual Passage Rotorseals ADP
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex Dual Passage Rotorseals ADP are expertly designed for efficient operation in industrial settings. Featuring a 1-11 1/2 thread outlet and a compact, robust build, these rotor seals seamlessly attach to machine shafts. With an inner passage equipped with a 1/4-18 port and maximum speed of 1200 rpm, they ensure optimal performance under pressures up to 150 psi. Weighing 4.0 lb, these rotor seals meet stringent industry standards for durability and reliability. Upgrade to Eaton-Airflex for top-notch quality and precision.

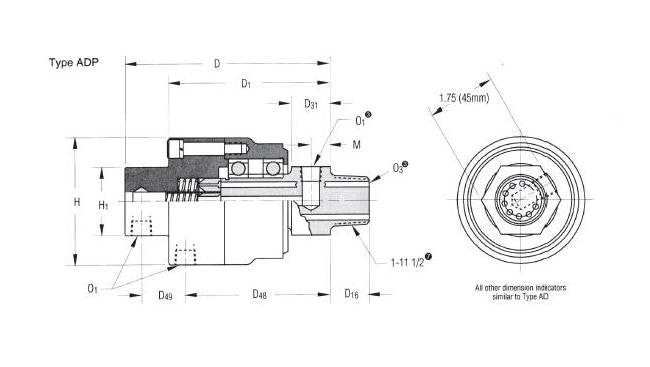

Product Specifications
Note 0
Passage consists of eight 0.14 in (3.6 mm) diameter holes.Passage consists of eight 0.14 in (3.6 mm) diameter holes.
Specifications Dimension D
5.28 in | 134 mm
Specifications Dimension D1
4.16 in | 106 mm
Specifications Dimension D30
1.000 in | 25.0 mm
Specifications Dimension D31
1.00 in | 25 mm
Specifications Dimension D48
3.73 in | 95 mm
Specifications Dimension D49
1.13 in | 29 mm
Specifications Dimension H
3.25 in | 83 mm
Specifications Dimension H1
1.75 in | 44 mm
Specifications Dimension M
0.50 in | 13 mm
Specifications Dimension O1
1/4-18
Specifications Inner Passage Area
0.049 in² | 0.32 cm²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Pressure
150 psi | 10.4 bar
Specifications Maximum Speed
1200 rpm
Specifications Outer Passage Area
0.124 in² | 0.80 cm²
Specifications Size
ADP
Specifications Weight
4.0 lb | 1.8 kg
