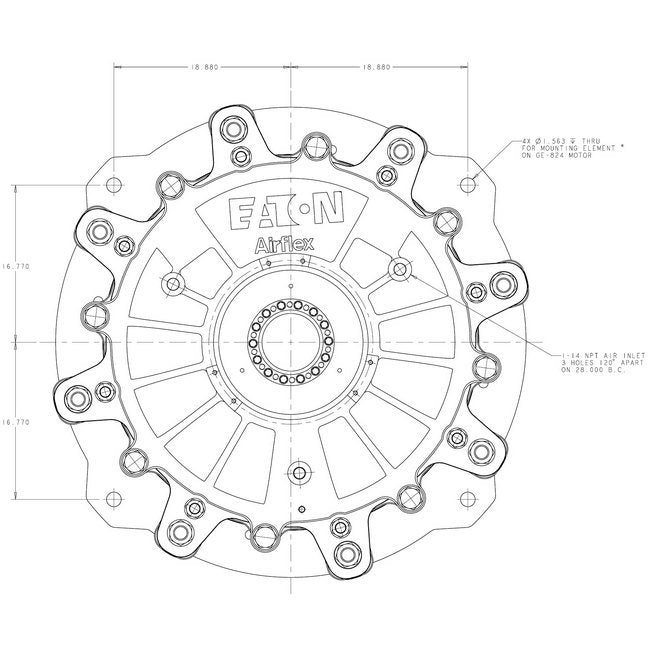

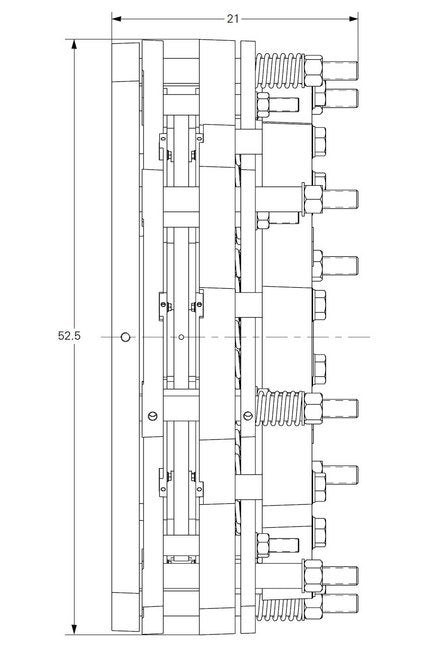

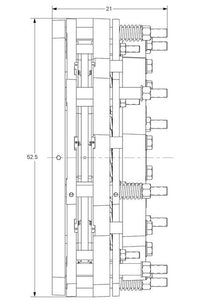

Eaton Airflex FHB Disc Brake
Eaton Airflex FHB Disc Brake
SKU:CLU-529e72
Revolutionary Eaton Airflex FHB Disc Brake for heavy-duty machinery applications, combining durability and performance.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Eaton Airflex FHB Disc Brake
$1,999.99
Quantity: 1
Claim Your Seller Account
Eaton Airflex FHB Disc Brake
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton Airflex FHB Disc Brake redefines disc brake technology with its innovative Floating Housing Brake design. Ideal for Surface Mining, Oilfield, and heavy-duty industrial machinery, this air-cooled spring applied brake boasts exceptional friction life and rapid friction replacement capability. Featuring a solid cast rotating disc and organic friction material, it offers lower inertia than typical caliper brakes, ensuring high performance in non-cyclic brake engagement applications with precise balance requirements.
Product Specifications
Benefits 0
Ability to quickly change the friction pads reduces down time on dragline from 3 hours to 1 hourReduced maintenance cost with elimination of spline tooth or gear wearLonger friction pad wear life due to a full 360º annular discFaster and safer installation with exclusive shaft lock assembly for ease of mounting and removalVirtually no wear during free wheeling, allows high product life
Features 0
Rated for over 430,000 lb-in of torquePatented braking concept uses a floating housing instead of a floating rotorMultiple brake installation designs exist for industry leading motorsFixed hub and rotor design
Note 0
Dynamic torque calculated based on 36 sets of springs, static torque is approximately 15% more. Torque in each application is dependent on number of spring sets.
Specifications Actuation
Spring Applied, Air Release
Specifications Dynamic Torque
432900 lb·in | 48918 Nm
Specifications Length Engaged
18.24 in | 463.3 mm
Specifications Length Released
18.48 in | 469.39 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Speed
950 rpm
Specifications Number Of Spring Sets
36
Applications 0
DraglinesHoistDragSwingPropel (Walk)Electric ShovelsHoistCrowdSwingPropelWinches
