Eaton-Airflex Model 325DBB Disc Style Brake

Eaton-Airflex Model 325DBB Disc Style Brake

CLU-263a18

Eaton-Airflex Model 325DBB Disc Brake: Equal torque in both directions, low inertia design, ideal for high cyclic applications. Self-lubricating seals, optimal for bottling, power shovels, conveyors, shears, and power presses.

$2,499.99
$2,499.99
Sale

Initiate Order

Eaton-Airflex Model 325DBB Disc Style Brake

Eaton-Airflex Model 325DBB Disc Style Brake

$2,499.99

Quantity: 1

Claim Your Seller Account

Eaton-Airflex Model 325DBB Disc Style Brake

Eaton-Airflex Model 325DBB Disc Style Brake

$2,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Eaton-Airflex Model 325DBB Disc Style Brake is a spring-applied, pressure-released brake known for its ability to develop equal torque in both directions of rotation, making it ideal for demanding applications. Featuring low inertia friction disc assembly and optional split friction discs, it offers superior performance in high cyclic applications. With PolyPak seals for longevity and self-lubricating properties, this brake ensures reliability and minimal maintenance. Designed for bottling equipment, power shovels, conveyors, shears, and power presses, the Model 325DBB meets stringent industry standards.

Product Specifications

Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

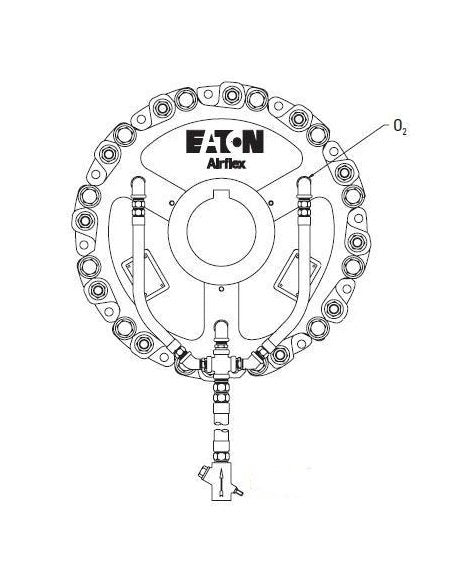

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release
Specifications Dimension D
16.69 in | 424 mm
Specifications Dimension D1
9.31 in | 236 mm
Specifications Dimension D31
1.75 in | 44 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
0.75 in | 19 mm
Specifications Dimension H16
11.50 in | 292 mm
Specifications Dimension J
30.630 in | 778.0 mm
Specifications Dimension J1
24.375 in | 619.1 mm
Specifications Dimension J2
30.89 in | 785 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
15.19 in | 386 mm
Specifications Disc Gear Inertia
139 lb·ft² | 5.84 kg·m²
Specifications Disc Gear Weight
403 lb | 183 kg
Specifications Dynamic Torque Rating
303000 lb·in | 34237 Nm
Specifications Housing Weight
1120 lb | 508 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
7.50 in | 191 mm
Specifications Maximum Speed
1400 rpm
Specifications Minimum Bore
5.38 in | 137 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
325DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
