Dependable Eaton-Airflex PCB-204 Tapered Bushing Clutch & Brake Assembly for industrial applications. Size: 10CB300, Torque: 8150 lb·in, Air Applied actuation.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Eaton-Airflex PCB-204 Tapered Bushing Clutch and Brake Assembly
$1,499.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex PCB-204 Tapered Bushing Clutch and Brake Assembly
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex PCB-204 Assembly, part of the CB Clutches and Brakes product line, is meticulously engineered to deliver reliable clutch or brake performance in demanding industrial settings. With a Size of 10CB300 and Torque Rating up to 8150 lb·in, this assembly excels in high-speed, cyclic operations and power transmission applications. Manufactured by Eaton-Airflex, it features an Air Applied actuation system, ensuring precise and efficient operation. Its robust design and adherence to industry standards make it ideal for institutional and government procurement requirements.
Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in
Specifications Bolt Hole Size L
0.531 in | 13.5 mm

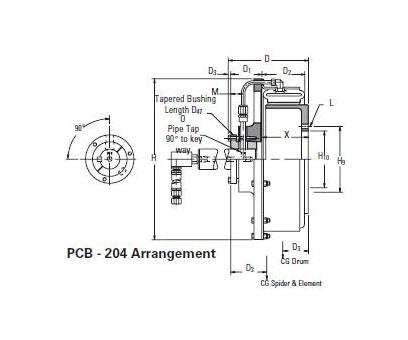

Specifications Dimension D
9.19 in | 233 mm
Specifications Dimension D2
4.13 in | 105 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D37
3.2 in | 81 mm
Specifications Dimension D38
1.4 in | 36 mm
Specifications Dimension H
15.37 in | 390 mm
Specifications Dimension H10
6.250 in | 158.8 mm
Specifications Dimension H9
7.250 in | 184.2 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
4.44 in | 113 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
7.94 in | 202 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
1.750 thru 2.500
Specifications Size
10CB300
Specifications Torque Rating At 52 Bar
921 Nm
Specifications Torque Rating At 75 Psi
8150 lb·in
