Eaton-Airflex PCB-205 Tapered Bushing Arrangement Clutch & Brake
Eaton-Airflex PCB-205 Tapered Bushing Arrangement Clutch & Brake
SKU:CLU-ddf4c9
Dependable Eaton-Airflex PCB-205 Tapered Bushing Arrangement for industrial clutch & brake needs.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Eaton-Airflex PCB-205 Tapered Bushing Arrangement Clutch & Brake
$1,499.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex PCB-205 Tapered Bushing Arrangement Clutch & Brake
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

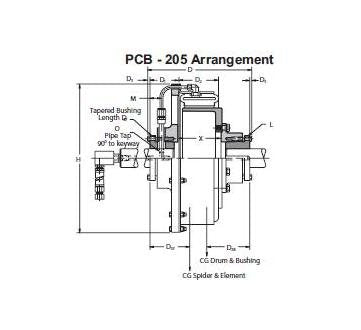

The Eaton-Airflex PCB-205 Tapered Bushing Arrangement is a robust and precision-engineered clutch and brake element assembly tailored to excel in rigorous industrial applications. Suitable for high-speed cyclic operations, power transmission, and precise coupling needs, this arrangement ensures dependable performance. With dimensions meeting Size 10CB300 standards, including Dimension D of 11.81 inches, Spider Shaft Diameter of 1.750 thru 2.500, and an Air Applied Actuation mechanism by Eaton-Airflex, this arrangement is designed to meet the most demanding operational requirements with reliability.
Product Specifications
Specifications Actuation
Air Applied
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
11.81 in | 300 mm
Specifications Dimension D1
3.44 in
Specifications Dimension D3
0.28 in
Specifications Dimension D37
3.2 in | 81 mm
Specifications Dimension D38
3.2 in | 81 mm
Specifications Dimension D47
2.88 in
Specifications Dimension M
1.38 in
Specifications Dimension X
5.50 in | 140 mm
Specifications Hub Shaft Diameter
1.750 thru 2.500
Specifications Manufacturer
Eaton-Airflex
Specifications Size
10CB300
Specifications Spider Shaft Diameter
1.750 thru 2.500
