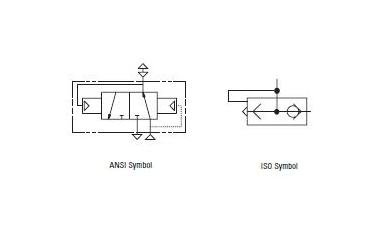

The Eaton-Airflex Quick Release Valve (QRV) is an innovative pneumatic three-way valve designed for automatic closure upon pressurization and quick exhaust release when pressure drops. This valve reduces lag time by providing an exhaust port near the pressurized chamber, ensuring rapid responses. With a diaphragm made of polyurethane and housing of zinc alloy, it offers a long mean life over five million cycles. Operating at a maximum pressure of 150 psi and a wide temperature range, this valve guarantees reliable performance in varied conditions.
Product Specifications
Air Quality 0
Clean and dry to avoid contamination of housing and diaphragm. Any additive used in air supply must be compatible with valve materials.
Quick Release Valve Options 0
Diaphragm & End Cap Kit - DP | Diaphragm, Muffler & End Cap Kit - DQ | with Inlet Pipe Thread - DG | with Inlet Pipe Thread & Muffler - DT | with Metal Sleeve - DE | with Metal Sleeve & 1/4 Pipe Adapter - DM | with Metal Sleeve & Muffler - DS | with Metal Sleeve & Pipe Adapter - DL | with Rubber Sleeve - DF | with Rubber Sleeve & Muffler - DR
Specifications Cylinder Port Thread
3/4-14
Specifications Diaphragm Material
Polyurethane

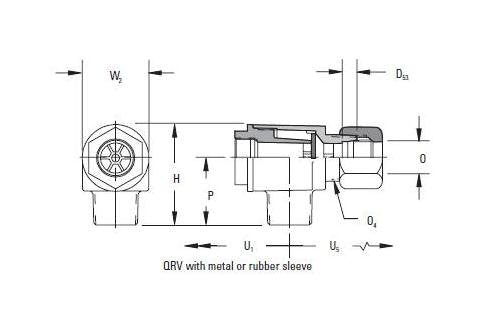

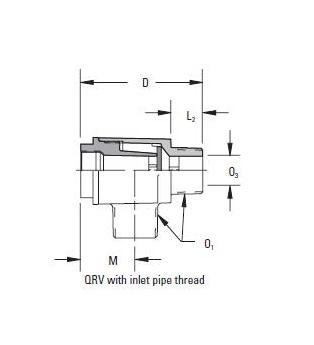

Specifications Dimension D
2.85 in | 72 mm

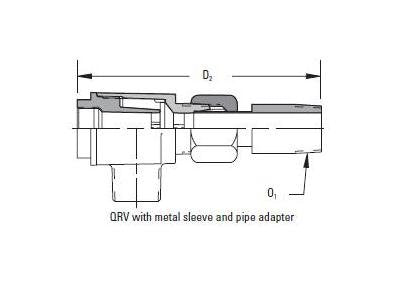

Specifications Dimension D1
4.27 in | 108 mm
Specifications Dimension D53
0.34 in | 9 mm
Specifications Dimension H
2.33 in | 59 mm

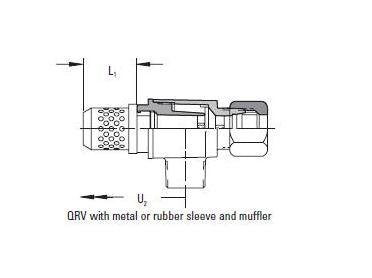

Specifications Dimension L1
1.42 in | 36 mm
Specifications Dimension L2
0.74 in | 19 mm
Specifications Dimension M
1.28 in | 33 mm
Specifications Dimension O
0.750 in | 19.1 mm
Specifications Dimension O1
3/4-14
Specifications Dimension O3
0.67 in | 17 mm
Specifications Dimension O4
1 1/16-16
Specifications Dimension P
1.56 in | 40 mm
Specifications Dimension U1
1.49 in | 38 mm
Specifications Dimension U2
2.80 in | 71 mm
Specifications Dimension U5
2.52 in | 64 mm
Specifications Dimension W2
1.56 in | 40 mm
Specifications Flow Capacity Cylinder To Exhaust
376 ft³/min | 17.2 m³/min
Specifications Flow Capacity Inlet To Cylinder
287 ft³/min | 8.1 m³/min
Specifications Housing Material
Zinc alloy
Specifications Inlet Port Thread
3/8-18
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Operating Pressure
150 psi | 10.3 bar
Specifications Mean Life
Over five million cycles at 75 psi (5.2 bar) and 80 ºF (27 ºC).
Specifications Minimum Sealing Pressure
2 psi | 0.14 bar
Specifications Muffler Part Numbers
414915
Specifications Operating Temperature Range
-40 to 49 ºC | -40 to 120 ºF
Specifications Size
3/4
Specifications Tubing Outside Diameter
0.750 in
