Eaton-Airflex Quick Release Valve
Eaton-Airflex Quick Release Valve
SKU:CLU-0a5184
Enhance pneumatic system performance with the Eaton-Airflex Quick Release Valve. Optimal response, reduced lag time, and exceptional durability for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Eaton-Airflex Quick Release Valve
$49.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex Quick Release Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

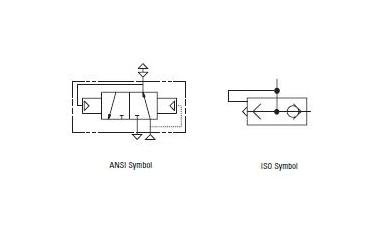

The Eaton-Airflex Quick Release Valve (QRV) is a high-performance pneumatic valve designed for precise control and optimal response in pneumatic systems. Engineered as a three-way valve, the QRV automatically closes under pressure and opens for exhaust when pressure drops, reducing lag time and enhancing operational efficiency. With a durable zinc alloy housing and polyurethane diaphragm, this valve ensures reliable performance in demanding environments. The valve's compact design features an exhaust port near the pressurized chamber, minimizing losses in long supply lines. Offering exceptional specifications like a maximum operating pressure of 150 psi and a mean life of over five million cycles, the Eaton-Airflex QRV is a top choice for industrial applications requiring quality, precision, and durability.
Product Specifications
Air Quality 0
Clean and dry to avoid contamination of housing and diaphragm. Any additive used in air supply must be compatible with valve materials.
Quick Release Valve Options 0
Replacement Kit - BZ | Replacement Kit with Muffler - DX | with 1-11 1/2 Pipe Threads Both Ports - BF | with Pipe Adapter - BR | with Pipe Adapter & Muffler - CA | with Steel Sleeve - BD | with Steel Sleeve & Muffler - BE
Specifications Cylinder Port Thread
1-11 1/2
Specifications Diaphragm Material
Polyurethane

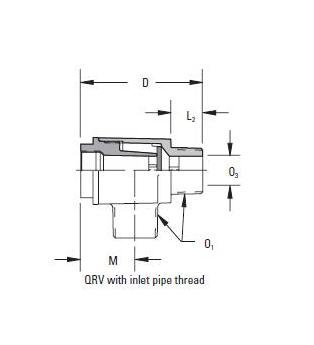

Specifications Dimension D
3.38 in | 86 mm

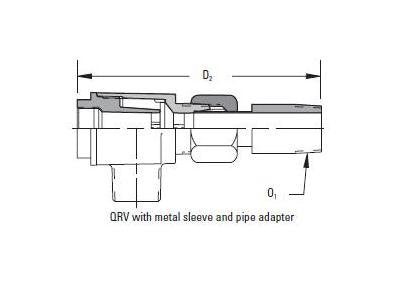

Specifications Dimension D1
6.04 in | 153 mm
Specifications Dimension D53
0.38 in | 10 mm
Specifications Dimension H
2.94 in | 75 mm

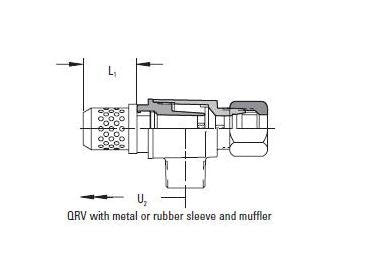

Specifications Dimension L1
3.09 in | 78 mm
Specifications Dimension L2
0.81 in | 21 mm
Specifications Dimension M
1.61 in | 41 mm
Specifications Dimension O
1.000 in | 25.4 mm
Specifications Dimension O1
1-11 1/2
Specifications Dimension O3
0.94 in | 24 mm
Specifications Dimension O4
1 5/16-16
Specifications Dimension P
1.94 in | 49 mm

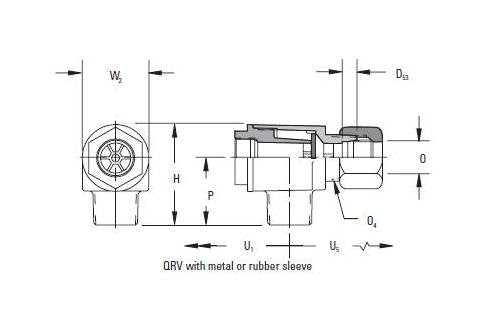

Specifications Dimension U1
1.90 in | 48 mm
Specifications Dimension U2
4.50 in | 114 mm
Specifications Dimension U5
2.75 in | 70 mm
Specifications Dimension W2
2.00 in | 51 mm
Specifications Housing Material
Zinc alloy
Specifications Inlet Port Thread
3/8-18
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Operating Pressure
150 psi | 10.3 bar
Specifications Mean Life
Over five million cycles at 75 psi (5.2 bar) and 80 ºF (27 ºC).
Specifications Minimum Sealing Pressure
2 psi | 0.14 bar
Specifications Muffler Part Numbers
305018
Specifications Operating Temperature Range
-40 to 49 ºC | -40 to 120 ºF
Specifications Size
1
Specifications Tubing Outside Diameter
1.000 in
