Eaton-Airflex Quick Release Valve QRV
Eaton-Airflex Quick Release Valve QRV
SKU:CLU-fc8a8c
Eaton-Airflex QRV: Reliable, high-performance pneumatic valve for rapid pressure release in industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Eaton-Airflex Quick Release Valve QRV
$59.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex Quick Release Valve QRV
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex Quick Release Valve (QRV) is a high-performance pneumatic valve designed for efficient pressure release in three-way applications. With a durable zinc alloy housing and polyurethane diaphragm, this valve ensures reliable operation with a maximum pressure rating of 150 psi. The innovative design minimizes lag time by swiftly closing upon pressurization and opening to exhaust, optimizing response times. Ideal for clutches and brakes, this valve boasts a mean life of over five million cycles, making it a cost-effective and dependable choice for demanding industrial environments.
Product Specifications
Air Quality 0
Clean and dry to avoid contamination of housing and diaphragm. Any additive used in air supply must be compatible with valve materials.
Quick Release Valve Options 0
Diaphragm & End Cap Kit - DP | Diaphragm, Muffler & End Cap Kit - DQ | with Inlet Pipe Thread - DG | with Inlet Pipe Thread & Muffler - DT | with Metal Sleeve - DE | with Metal Sleeve & 1/4 Pipe Adapter - DM | with Metal Sleeve & Muffler - DS | with Metal Sleeve & Pipe Adapter - DL | with Rubber Sleeve - DF | with Rubber Sleeve & Muffler - DR
Specifications Cylinder Port Thread
3/8-18
Specifications Diaphragm Material
Polyurethane

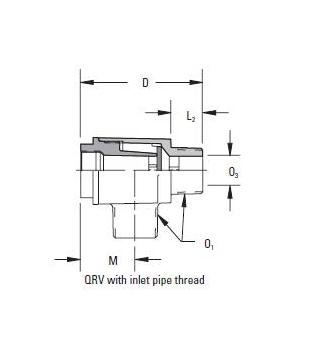

Specifications Dimension D
2.10 in | 53 mm

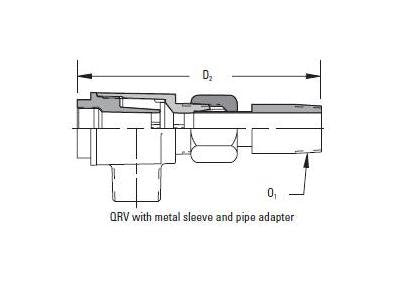

Specifications Dimension D1
3.52 in | 89 mm
Specifications Dimension D53
0.31 in | 8 mm
Specifications Dimension H
1.93 in | 49 mm

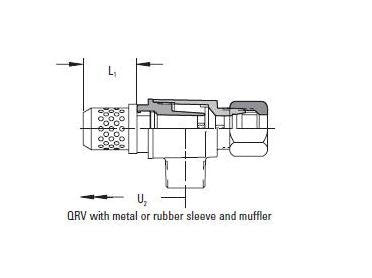

Specifications Dimension L1
1.42 in | 36 mm
Specifications Dimension L2
0.56 in | 14 mm
Specifications Dimension M
0.95 in | 24 mm
Specifications Dimension O
0.500 in | 12.7 mm
Specifications Dimension O1
3/8-18
Specifications Dimension O3
0.43 in | 11 mm
Specifications Dimension O4
3/4-16
Specifications Dimension P
1.26 in | 32 mm

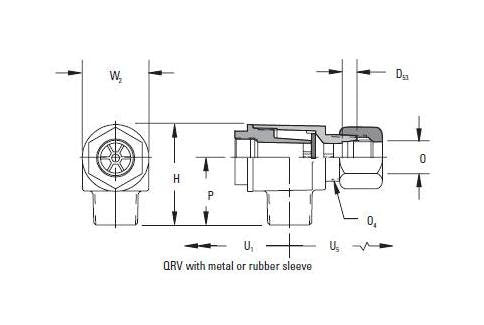

Specifications Dimension U1
1.17 in | 30 mm
Specifications Dimension U2
2.47 in | 63 mm
Specifications Dimension U5
2.00 in | 51 mm
Specifications Dimension W2
1.36 in | 35 mm
Specifications Flow Capacity Cylinder To Exhaust
206 ft³/min | 5.8 m³/min
Specifications Flow Capacity Inlet To Cylinder
121 ft³/min | 3.4 m³/min
Specifications Housing Material
Zinc alloy
Specifications Inlet Port Thread
3/8-18
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Operating Pressure
150 psi | 10.3 bar
Specifications Mean Life
Over five million cycles at 75 psi (5.2 bar) and 80 ºF (27 ºC).
Specifications Minimum Sealing Pressure
2 psi | 0.14 bar
Specifications Muffler Part Numbers
414915
Specifications Operating Temperature Range
-40 to 49 ºC | -40 to 120 ºF
Specifications Size
3/8
Specifications Tubing Outside Diameter
0.500 in
