Eaton-Airflex Single Passage Internal Rotorseal System
Eaton-Airflex Single Passage Internal Rotorseal System
SKU:CLU-d33ce8
Versatile single passage rotorseal system with high-speed capability & leakage protection
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Eaton-Airflex Single Passage Internal Rotorseal System
$129.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex Single Passage Internal Rotorseal System
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

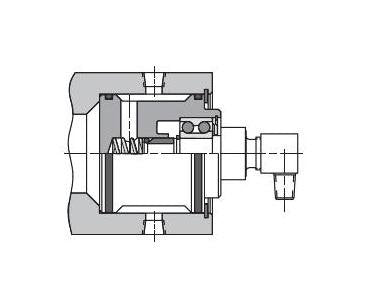

The Eaton-Airflex Single Passage Internal Rotorseal System is designed for applications where axial length is critical. Inserted into the shaft end, this system ensures positive protection against leakage and compensates for seal wear. With a maximum speed of 4000 rpm and maximum pressure of 150 psi, this solution offers versatility and reliability in various settings.
Product Specifications
General Description 0
The rotating seal is established by a non-metallic sealing ring, held against the rotorseal shaft by a light spring force. The sealing ring is designed so that media pressure acts on both of its ends to minimize the force on the sealing surface.This design gives positive protection against leakage and compensates for seal wear. Ball bearings are used between the stationary and rotating ports to provide rigidity to the rotorseal assembly and to minimize the running torque.Rotorseals are available with single, dual and triple passages, in a variety of sizes and designs, to provide the versatility needed to handle most requirements. Single passage rotorseals, in pneumatic installation, can be plumbed with a quick release valve at its inlet port to provide a convenient exhaust.In most applications, the rotorseal is mounted to the end of a shaft. The shaft is rifle and cross drilled to provide a passageway for the media transmitted. It is important that the rotorseal's axis of rotation be concentric with the rotating member's axis of rotation to minimize rotorseal wobble.To accommodate eccentricities, a flexible connection must be used between the rotorseal and supply. A rigid connection will tend to preload the rotorseal bearings. The flexible connection should not be installed taut and should include a union and 45º elbow.The flexible connection should be attached to the rotorseal prior to fastening the rotorseal to the rotating body to avoid seal or bearing damage. The union connection to the supply line is made last.For applications which demand a large flow, single passage rotorseal, the RH (rotating housing) type provides a solution. This design incorporates a mounting flange for attachment to the machinery shaft or assembly. External American National Pipe Threads are provided on the rotorseal inlet shaft to facilitate supply line connections.

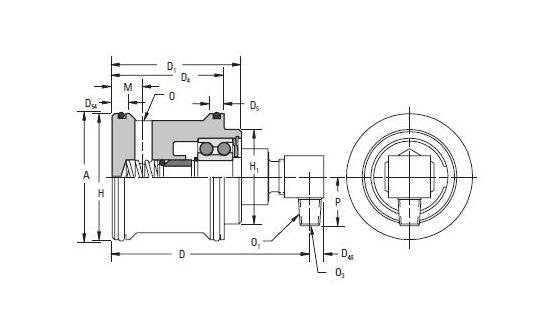

Specifications Dimension A
1.596 in | 40.5 mm
Specifications Dimension D
3.19 in | 81 mm
Specifications Dimension D1
2.00 in | 51 mm
Specifications Dimension D4
2.000 in | 50.8 mm
Specifications Dimension D48
0.22 in | 6 mm
Specifications Dimension D54
0.41 in | 10 mm
Specifications Dimension D55
0.25 in | 6 mm
Specifications Dimension H
1.498 in | 38.0 mm
Specifications Dimension H1
1.50 in | 38 mm
Specifications Dimension M
0.41 in | 10 mm
Specifications Dimension O
0.19 in | 5 mm
Specifications Dimension O1
1/8-27
Specifications Dimension O3
0.16 in | 4 mm
Specifications Dimension P
0.63 in | 16 mm
Specifications Hex Size
0.63 in | 16 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Pressure
150 psi | 10.4 bar
Specifications Maximum Speed
4000 rpm
Specifications Passage Area
0.019 in² | 0.12 cm²
Specifications Size
AA2
Specifications Weight
0.4 lb | 0.2 kg
