Eaton-Airflex Single Passage Rotorseal B3
Eaton-Airflex Single Passage Rotorseal B3
SKU:CLU-a3e48e
Eaton-Airflex Single Passage Rotorseal B3: High-pressure clutch & brake accessory with non-metallic sealing ring, optimal media transmission, and rigidity for institutional needs.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Eaton-Airflex Single Passage Rotorseal B3
$89.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex Single Passage Rotorseal B3
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex Single Passage Rotorseal B3 is a high-pressure clutch and brake accessory featuring a non-metallic sealing ring design for optimal leakage protection. With single passage capability and maximum pressure of 1000 psi, this rotorseal ensures efficient media transmission. Ball bearings provide rigidity while maintaining low running torque, meeting institutional fluid transfer requirements. Compliant with Eaton-Airflex manufacturing standards for precision and durability.
Product Specifications
General Description 0

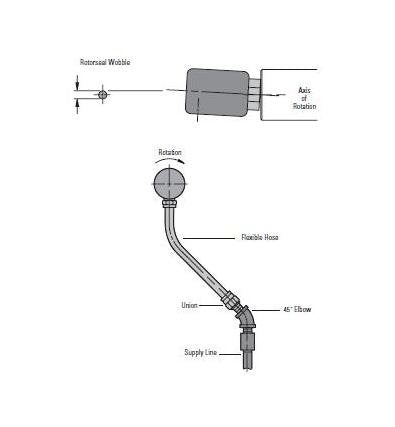

The rotating seal is established by a non-metallic sealing ring, held against the rotorseal shaft by a light spring force. The sealing ring is designed so that media pressure acts on both of its ends to minimize the force on the sealing surface.This design gives positive protection against leakage and compensates for seal wear. Ball bearings are used between the stationary and rotating ports to provide rigidity to the rotorseal assembly and to minimize the running torque.Rotorseals are available with single, dual and triple passages, in a variety of sizes and designs, to provide the versatility needed to handle most requirements. Single passage rotorseals, in pneumatic installation, can be plumbed with a quick release valve at its inlet port to provide a convenient exhaust.In most applications, the rotorseal is mounted to the end of a shaft. The shaft is rifle and cross drilled to provide a passageway for the media transmitted. It is important that the rotorseal's axis of rotation be concentric with the rotating member's axis of rotation to minimize rotorseal wobble.To accommodate eccentricities, a flexible connection must be used between the rotorseal and supply. A rigid connection will tend to preload the rotorseal bearings. The flexible connection should not be installed taut and should include a union and 45º elbow.The flexible connection should be attached to the rotorseal prior to fastening the rotorseal to the rotating body to avoid seal or bearing damage. The union connection to the supply line is made last.In most applications, only one fluid is to be transmitted to a rotating assembly. This group of rotorseals will handle most medium volume, single passage requirements. External threads on the seal shaft and standard pipe threads on the inlet port make installations an easy job.
Note 0
Operation at maximum pressure and speed should be avoided. Refer to K-14 for operating parameters.

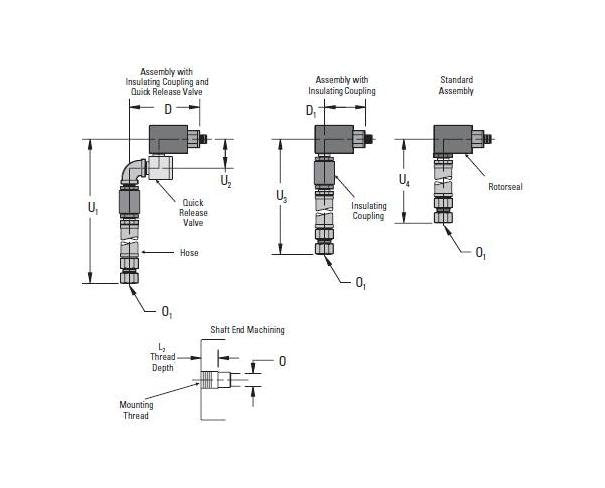

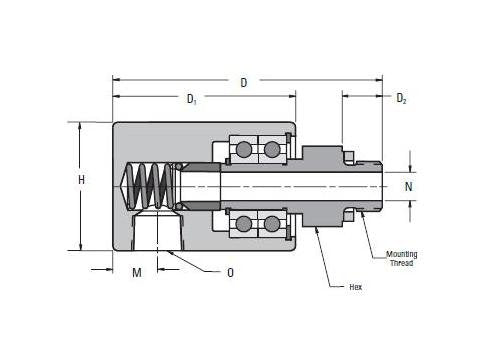

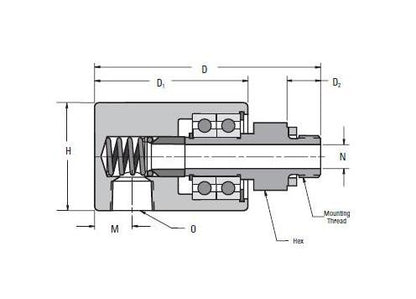

Specifications Dimension D
3.38 in | 3.70 in | 86 mm | 94 mm
Specifications Dimension D1
2.25 in | 2.53 in | 57 mm | 64 mm
Specifications Dimension D2
0.50 in | 13 mm

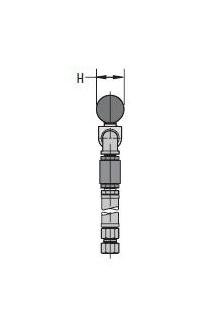

Specifications Dimension H
1.63 in | 41 mm
Specifications Dimension L2
0.75 in | 19 mm
Specifications Dimension M
0.56 in | 14 mm
Specifications Dimension N
0.36 in | 9 mm
Specifications Dimension O
0.50 in | 3/8-18 in | 13 mm | 3/8-18 mm
Specifications Dimension O1
3/8-18
Specifications Dimension U1
15.3 in | 389 mm
Specifications Dimension U2
1.7 in | 43 mm
Specifications Dimension U3
14.5 in | 368 mm
Specifications Dimension U4
12.5 in | 318 mm
Specifications Hex Size
0.875 in | 22.2 mm
Specifications Inlet Port Thread O
3/8-18
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Pressure
1000 psi | 69 bar
Specifications Maximum Speed
600 rpm
Specifications Mounting Size Thread
5/8-18
Specifications Number Of Passages
1
Specifications Passage Area
0.111 in² | 0.72 cm²
Specifications Rotorseal Type
B3
Specifications Size
B3
Specifications Weight
0.6 lb | 0.3 kg
