Eaton-Airflex VC Drum Clutch 38VC1200
Eaton-Airflex VC Drum Clutch 38VC1200
SKU:CLU-38edfb
Eaton-Airflex VC Drum Clutch 38VC1200 - High-torque, ventilated construction for heavy machinery. Meets Federal/DoD and GSA standards.
Regular price
$684.00
Regular price
Sale price
$684.00
Unit price
per
Initiate Order
Eaton-Airflex VC Drum Clutch 38VC1200
$684.00
Quantity: 1
Claim Your Seller Account
Eaton-Airflex VC Drum Clutch 38VC1200
$684.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex VC Drum Clutch 38VC1200 offers exceptional torque transmission with a torque rating of 680 lb·in, ideal for heavy-duty applications like Grinding Mills, Marine Propulsion, Metal Forming Machinery, and Oil Field Machinery. Its ventilated construction ensures optimal cooling for prolonged operation, while its serviceability allows for easy maintenance and part replacement. This clutch meets Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, making it a reliable choice for institutional and government buyers.
Product Specifications
Features 0
Ventilated ConstructionFriction shoe backing plates have large air passages through their entire length. This construction coupled with scalloped side plates allows cooling air to flow through the element. In addition, the large exposed inside diameter assures the coolest possible operation. None of the heat is generated deep in the element's internal parts where it can be trapped. The open construction assures rapid heat dissipation.ServiceabilityThe VC clutch can be dismantled on the shaft to gain access to its component parts. All parts are available as replacement parts.A limited number of element sizes are available in a split configuration. They are used in applications having limited axial access for element maintenance. The following pages give additional descriptive information, selection procedures and common clutch and brake arrangements for the complete VC product line.
General Description 0
VC design and construction is different from the CB and CM elements in that the torque is transmitted by torque bars rather than the sidewalls of the actuating tube. The loose actuating tube is contained within a housing formed by a rim and two side plates. and is replaceable. The torque bars, which are held in position by the side plates, pass through cavities in the backing plates of the friction shoes. Pressurizing the actuating tube forces the friction shoes to engage around a cylindrical drum. Leaf springs in the torque bar cavities of the backing plates retract the friction shoes when the actuating tube pressure is released. Element torque capacity is dependent upon the applied pressure and rotating speed. Catalog ratings are given at 75 psi (5.2 bar) and zero rpm. Maximum recommended pressure is 125 psi (8.6 bar). Adjustment for pressure and speed is explained under Selection Procedure.VC elements are available in 24 sizes which are identified by the drum diameter in inches on which they constrict and the width in inches of its friction lining. For a given drum diameter it is possible to have two different lining widths. For this reason, the elements are grouped by lining width into a narrow series and a wide series. As an example, the narrow series 20VC600 and the wide series 20VC1000 both constrict on a 20 inch diameter drum. But, the narrow unit has a lining width of 6 inches, and the wide unit has a lining width of 10 inches. The smallest VC element will constrict on a 11.5 inch (292 mm) diameter drum and the largest on a 76 inch (1930 mm) diameter drum.Two elements of a narrow series can be bolted together to form a dual element having twice the torque capacity of a single element. With the exception of the 14VC1000 element, the wide series elements can also be dualed. The large drum hub diameter and small drum diameter restricts the radial space available for mechanically connecting the drums to the hub and makes dualing the 14VC1000 elements impractical.The VC design offers the following features in addition to the constricting features described earlier in this section.
Note 0
Part Number refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Actuation
Air Applied
Specifications Air Tube Cavity
755 in³ | 12.4 dm³
Specifications Angle Q
9.000 º
Specifications Centrifugal Loss Cs
5.66 E-06 bar/rpm2 | 82 E-06 psi/rpm2

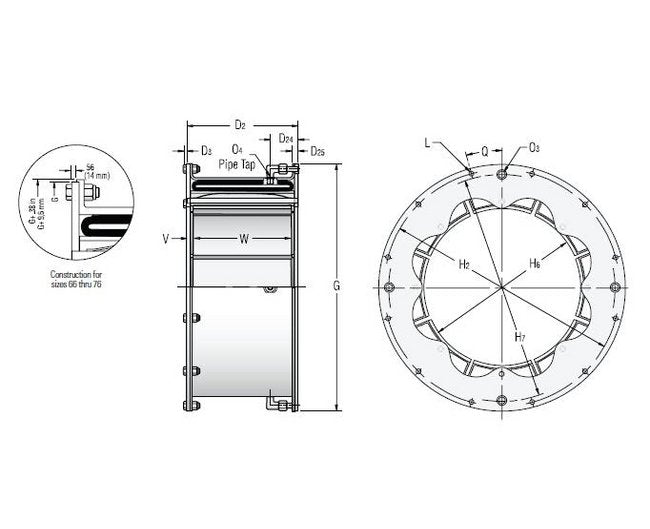

Specifications Dimension D2
13.75 in | 349 mm
Specifications Dimension D24
3.13 in | 79 mm
Specifications Dimension D25
0.69 in | 18 mm
Specifications Dimension D3
0.47 in | 12 mm
Specifications Dimension G
49.375 in | 1254.1 mm
Specifications Dimension H2
47.875 in | 1216 mm
Specifications Dimension H6
38.22 in | 971 mm
Specifications Dimension H7
48.00 in | 1219 mm
Specifications Dimension J
97.86 kg·m²
Specifications Dimension L Diameter
0.750 in | 19.1 mm
Specifications Dimension O3
0.63 in | 16 mm
Specifications Dimension V
0.88 in | 22 mm
Specifications Friction Area
1360 in² | 8772 cm²
Specifications Friction Shoe Width W
12 in | 305 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Speed
740 rpm
Specifications Minimum Drum Diameter
37.81 in | 960 mm
Specifications New Friction
0.57 in | 14 mm
Specifications Number Of Hole L
20
Specifications O4 Number
4
Specifications Size
38VC1200
Specifications Size O4
3/4-14 NPT
Specifications Tolerance For L
+0.005/-0.000 in | +0.13/-0.00 mm
Specifications Tolerance For Sizes G
+0.000/-0.010 in | +0.00/-0.25 mm
Specifications Torque Rating 75 Psi55 Bar
680 lb·in | 7683 Nm
Specifications Weight
684 lb | 310 kg
Specifications Wk2
2330 lb·ft²
Specifications Worn Lining Thickness
0.38 in | 10 mm
Specifications W Number
12
Where Used 0
Grinding Mills Marine Propulsion Metal Forming MachineryOil Field Machinery
