Eaton-Airflex WCB2 Water Cooled Disc Brake Elements
Eaton-Airflex WCB2 Water Cooled Disc Brake Elements
SKU:CLU-7b6b80
High-performance disc brake elements for heavy-duty applications. Patented design for exceptional thermal management & control.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Eaton-Airflex WCB2 Water Cooled Disc Brake Elements
$2,799.99
Quantity: 1
Claim Your Seller Account
Eaton-Airflex WCB2 Water Cooled Disc Brake Elements
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton-Airflex WCB2 Disc Brake Elements are specially designed for heavy-duty clutch and brake applications, offering exceptional thermal load absorption and dissipation. Featuring a patented piston design, these externally cooled units provide rapid heat dissipation through water jackets, ensuring optimum performance in continuous slip service. With special high coefficient linings for increased torque and split wear spacers for easy maintenance, these elements deliver reliable operation. Suitable for various applications such as drilling rigs, marine mooring systems, and tension brakes, the WCB2 Elements are engineered to meet the demands of industrial settings while offering enhanced control and durability.
Product Specifications
Features 0
Patented piston designSingle or dual piston provides wider range of applied tension with greater control.Drop in powerhead packageStandard single piston elements can be retrofitted with a dual piston powerhead to provide increased control.Split wear spacersThe split wear spacers allow for wear adjustment without disassembly of the brake to minimize downtime and maintenance costs.Unique friction coupleA specially formulated friction material, interfacing with a copper alloy surface, eliminates the stick-slip characteristic associated with ordinary frictional devices.Rapid heat dissipationThe copper interface conducts heat rapidly to the circulating coolant.Open or closed loop coolant systemsThe element works equally well with open or closed loop circulating systems. On mobile equipment, the engineâs cooling system can be tapped to provide coolant to the element.Optional corrosion protectionFor marine environment applications, protective coatings are available to minimize corrosion.
Note 0
Basic part number only. Order gear separately.
Specifications Actuation
Air Applied
Specifications Bolt Circle Diameter H3
27.875 in | 708.0 mm
Specifications Bolt Circle H4
12.250 in | 311.2 mm
Specifications Bolt Hole Size H3
1 1/8-7
Specifications Coolant Port Thread Size
3/4 SAE ORB

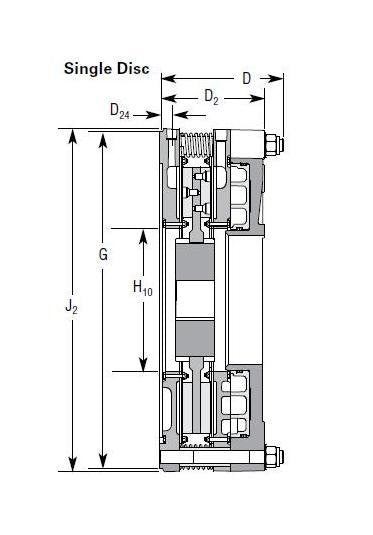

Specifications Dimension D
15.50 in | 394 mm
Specifications Dimension D1
8.63 in | 219 mm
Specifications Dimension D2
13.31 in | 338 mm
Specifications Dimension D24
1.06 in | 27 mm
Specifications Dimension D25
1.75 in | 44 mm
Specifications Dimension D29
0.250 in | 6.4 mm
Specifications Dimension D43
4.13 in | 105 mm
Specifications Dimension D46
1.38 in | 35 mm
Specifications Dimension G
29.998 in | 761.9 mm
Specifications Dimension H10
12.75 in | 324 mm
Specifications Dimension H13
24.375 in | 619.1 mm
Specifications Dimension J1
11.50 in | 292 mm
Specifications Dimension J2
30.62 in | 778 mm
Specifications Disc Gear Inertia
158 | 6.66
Specifications Disc Gear Weight
175 | 387
Specifications Dynamic Torque Rating
200000 lb-in @ 80 psi | 22597 Nm @ 5.5 bar
Specifications Gear Part Number
410970
Specifications Housing Inertia
822 lb·ft² | 34.64 kg·m²
Specifications Housing Weight
795 lb | 360 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore Size
7.38 in | 187 mm
Specifications Maximum Freewheeling Speed
1200
Specifications Maximum Slip Speed
715 rpm
Specifications Minimum Bore Size
4.63 in | 117 mm
Specifications Number H4
6
Specifications Number Of Bolt Holes H3
12
Specifications Number Of Coolant Ports O
8
Specifications Piston Inlet Bolt Circle Diameter
18.50 in | 470 mm
Specifications Single Piston Size
1/2-14
Specifications Size
224WCB
Specifications Size H4
3/8-16 in | 3/8-16 mm
Specifications Thermal Rating
540 hp | 402.7 kW
Specifications Water Volume
320 in³ | 5.3 dm³
