Eaton DBB Brakes Model 225DBB
Eaton DBB Brakes Model 225DBB
SKU:CLU-5f588e
High-performance Eaton DBB Brakes for demanding applications. Low inertia design, durable PolyPak seals, and precise torque ratings.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Eaton DBB Brakes Model 225DBB
$1,899.99
Quantity: 1
Claim Your Seller Account
Eaton DBB Brakes Model 225DBB
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Eaton DBB Brakes Model 225DBB are spring applied, pressure released, disc style brakes designed to deliver equal torque in both directions of rotation. These brakes offer high torque and thermal capacities suitable for the most demanding applications. Featuring low inertia friction disc assembly and PolyPak seals for durability and efficiency, these brakes excel in bottling equipment, power shovels, conveyors, shears, and power presses. With precise dimensions and dynamic torque rating, these brakes ensure reliable performance under high cyclic operations.
Product Specifications
Features 0
Low inertia friction disc assembly.Reduces the overall inertia that must be stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft brake arrangement.Long wearing, self lubricating PolyPak seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0

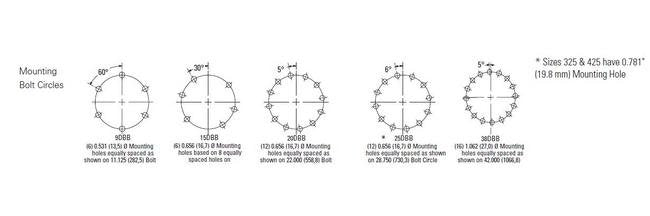

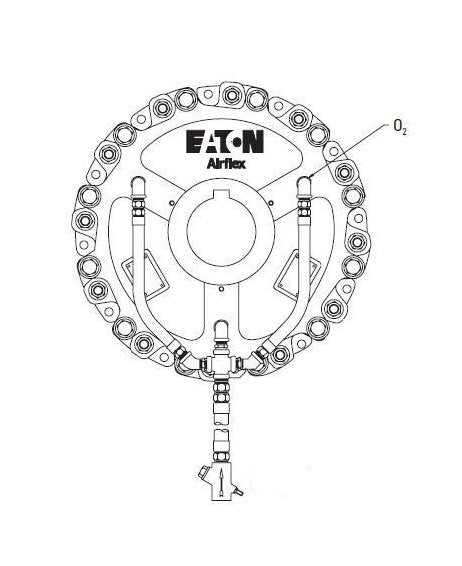

Tolerance +/- 0.12Basic part number only. Does not include gear. Gear must be ordered separately with the bore and keyway requirements.All DBB brakes can be supplied plumbed as shown with a flow control valve having American National Pipe thread ports of 1/2-14 for size 9DBB, 3/4-14 for sizes 15DBB, 20 DBB, 25DBB and 1-11 1/2 for size 38DBB
Specifications Actuation
Spring Applied, Air Release

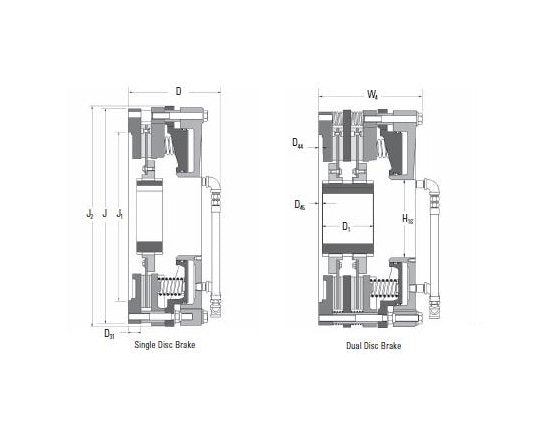

Specifications Dimension D
14.38 in | 365 mm
Specifications Dimension D1
7.000 in | 178 mm
Specifications Dimension D31
1.75 in | 44 mm
Specifications Dimension D44
0.25 in | 6 mm
Specifications Dimension D45
0.75 in | 19 mm
Specifications Dimension H16
11.50 in | 292 mm
Specifications Dimension J
30.630 in | 778.0 mm
Specifications Dimension J1
24.375 in | 619.1 mm
Specifications Dimension J2
30.89 in | 785 mm
Specifications Dimension O2
1/2-14 NPT
Specifications Dimension W4
12.88 in | 327 mm
Specifications Disc Gear Inertia
93 lb·ft² | 3.91 kg·m²
Specifications Disc Gear Weight
148 lb | 67 kg
Specifications Dynamic Torque Rating
219000 lb·in | 24725 Nm
Specifications Housing Weight
935 lb | 424 kg
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
7.56 in | 192 mm
Specifications Maximum Speed
1400 rpm
Specifications Minimum Bore
3.88 in | 99 mm
Specifications Minimum Releasing Pressure
60 psi | 4.1 bar
Specifications Model
225DBB
Where Used 0
Bottling equipmentPower ShovelsConveyorsShearsPower Presses
