EB Series 3-Way Ball Valves - Alloy C-276, Female BSPT, 1/4in, XQS Flow Pattern
EB Series 3-Way Ball Valves - Alloy C-276, Female BSPT, 1/4in, XQS Flow Pattern
SKU:VAL-e9b97d
Premium EB Series 3-Way Ball Valve - Alloy C-276, Female BSPT, 1/4in. Precision flow control with XQS pattern.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
EB Series 3-Way Ball Valves - Alloy C-276, Female BSPT, 1/4in, XQS Flow Pattern
$89.99
Quantity: 1
Claim Your Seller Account
EB Series 3-Way Ball Valves - Alloy C-276, Female BSPT, 1/4in, XQS Flow Pattern
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EB Series Encapsulated 3-way Ball Valve is crafted from durable Alloy C-276, ensuring long-lasting performance in demanding industrial environments. With Female BSPT connections at 1/4 inch size for seamless integration, this valve features a Cv of 0.75 and a flow pattern XQS. The modified PTFE packing material guarantees leak-free operation. The bright yellow Nylon handle with Stainless Steel insert ensures smooth and precise control, complemented by locking hardware for added security. Ideal for applications requiring reliable flow control and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

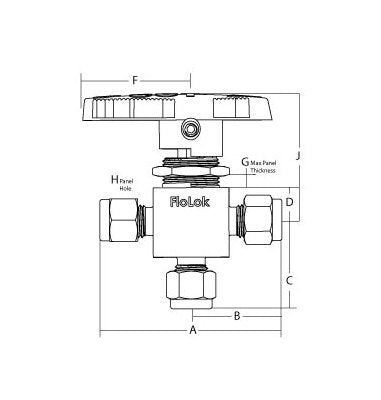

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
