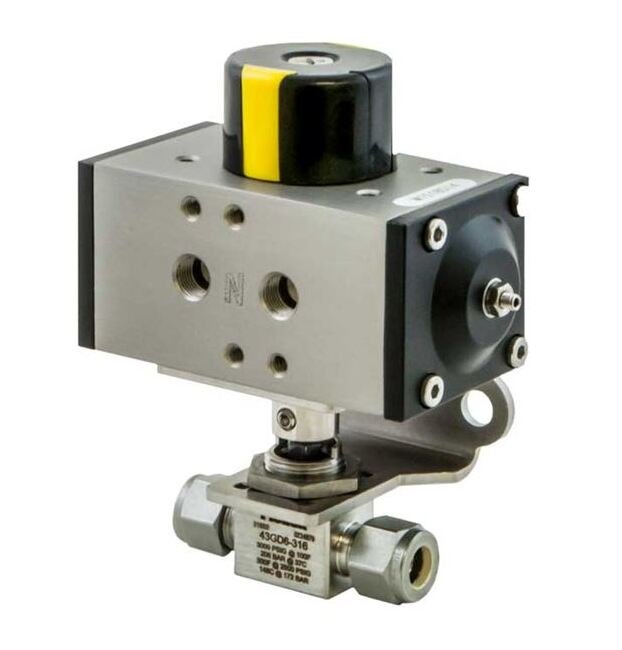

• EB Series Actuated Ball Valve Assembly - Image 1
  • EB Series Actuated Ball Valve Assembly - Image 2
1 2
SSP Fittings Corp. →

EB Series Actuated Ball Valve Assembly

EB Series Actuated Ball Valve Assembly

VAL-6a39c1

High-quality EB Series Brass Actuated Ball Valve Assembly with Unilok Tube Fittings and 180° Spring Return Port 2 Normally Closed actuation for precise fluid control.

$129.99
$129.99
Sale

Initiate Order

EB Series Actuated Ball Valve Assembly

EB Series Actuated Ball Valve Assembly

$129.99

Quantity: 1

Claim Your Seller Account

EB Series Actuated Ball Valve Assembly

EB Series Actuated Ball Valve Assembly

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The EB Series Actuated Ball Valve Assembly is a high-quality solution designed for precision control in fluid systems. Constructed with durable Brass material and featuring Unilok Tube Fittings, this 3-way valve ensures reliable performance. With a Cv of 0.08 and Modified PTFE packing, it can withstand working pressures of up to 2500 psig. The actuation type of 180° Spring Return Port 2 Normally Closed enables efficient operation, while meeting the stringent standards of government procurement requirements.

Product Specifications

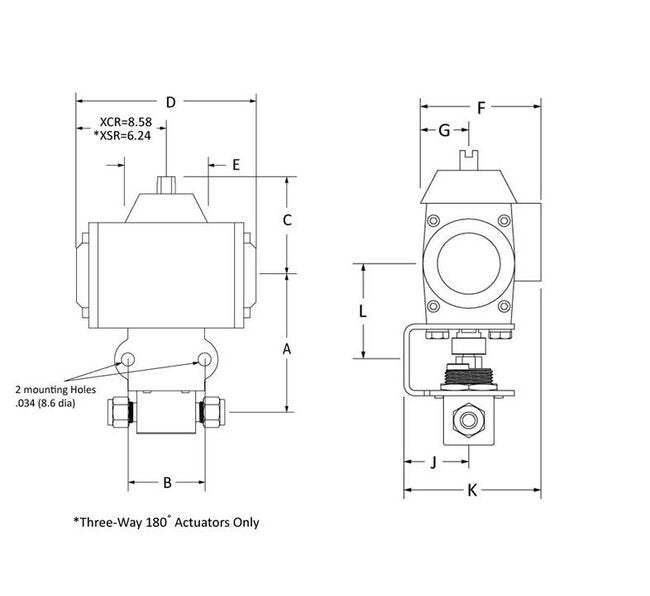

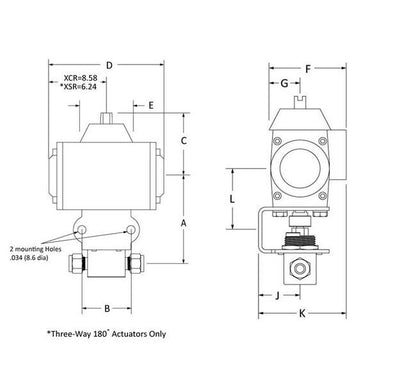

Dimensions A
3.07 in | 78 mm
Dimensions B
2.00 in | 50.8 mm
Dimensions C
2.58 in | 65.5 mm
Dimensions D
4.68 in | 118.9 mm
Dimensions E
2.15 in | 54.6 mm
Dimensions F
2.62 in | 66.5 mm
Dimensions G
1.02 in | 25.9 mm
Dimensions J
1.44 in | 36.6 mm
Dimensions K
3.43 in | 87.1 mm
Dimensions L
2.65 in | 67.3 mm
Specifications Actuation Type
180° Spring Return Port 2 Normally Closed
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/16 in
Specifications Connection 1 Type
Unilok Tube Fitting
Specifications Connection 2 Size
1/16 in
Specifications Connection 2 Type
Unilok Tube Fitting
Specifications Connection 3 Size
1/16 in
Specifications Connection 3 Type
Unilok Tube Fitting
Specifications Cv
0.08
Specifications Flow Path
3-way
Specifications Handle Color
180° Spring Return Port 2 Normally Closed
Specifications Handle Type
Actuated
Specifications Orifice
0.052 in | 1.3208 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
41GXD1-M
Specifications Temperature
300 | -20 to 80 ºC | -4 to 176 ºF
Specifications Working Pressure
2500 psig | 172 bar
