EB Series Brass Encapsulated 2-Way Ball Valves
EB Series Brass Encapsulated 2-Way Ball Valves
SKU:VAL-4da83c
Enhance fluid control with EB Series Brass Encapsulated 2-way Ball Valves - durable, high-performance valves for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
EB Series Brass Encapsulated 2-Way Ball Valves
$89.99
Quantity: 1
Claim Your Seller Account
EB Series Brass Encapsulated 2-Way Ball Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control system with the EB Series Brass Encapsulated 2-way Ball Valves. Made with durable brass, these valves feature FNPT connections, Modified PTFE packing, and a Red Nylon handle with a Stainless Steel insert. With a Cv of 6.3 and withstands working pressures up to 2500 psig, these valves ensure reliable performance in temperatures ranging from -65 to 150°F. Precision-engineered to meet stringent industry standards, the EB Series valves guarantee optimal flow control and longevity in demanding applications.
Product Specifications

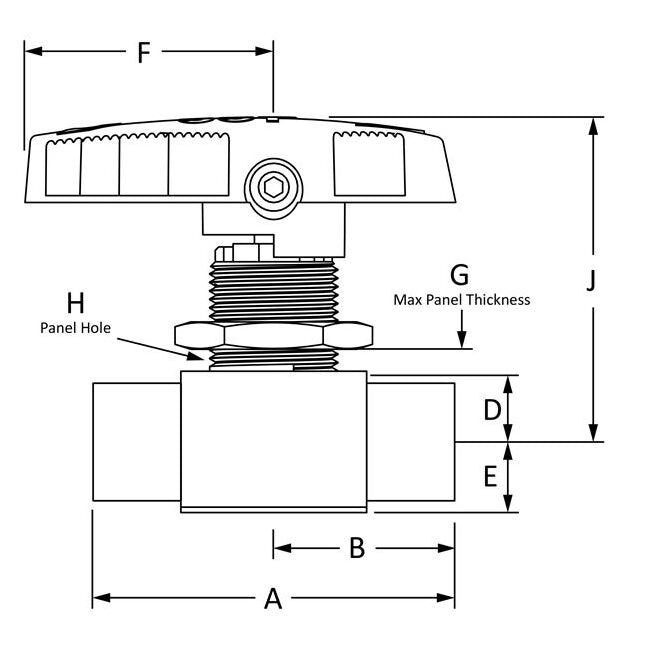

Dimensions A
3.12 in | 79.2 mm
Dimensions B
1.56 in | 39.6 mm
Dimensions D
0.69 in | 17.5 mm
Dimensions E
0.75 in | 19.1 mm
Dimensions F
3.02 in | 76.3 mm
Dimensions G
3/8 in | 9.5 mm
Dimensions H
1 1/2 in | 38.1 mm
Dimensions J
2.57 in | 65.3 mm

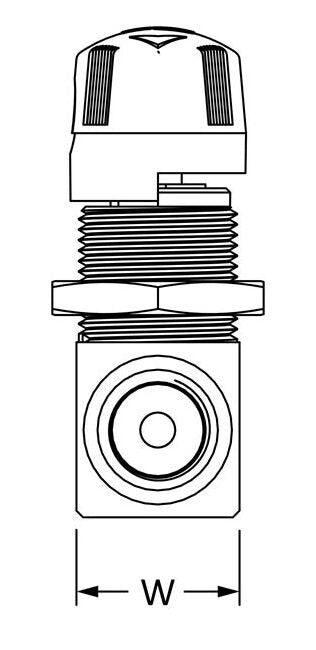

Dimensions W
1.50 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/2-14
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/2-14
Specifications Connection 2 Type
FNPT
Specifications Cv
6.3
Specifications Handle Color
Red
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.406 in | 10.3124 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 150 ºF | -53 to 65 ºC
Specifications Working Pressure
2500 psig | 172 bar
