The EB Series Brass Encapsulated 2-way Ball Valves are expertly crafted for precision control in fluid handling systems. Made from durable brass with a modified PTFE packing, these valves ensure reliable performance under high pressure (3000 psig) and wide temperature ranges (-65 to 300°F). Featuring a 1/4-18 MNPT connection on one end and a 1/4-inch Unilok Tube Fitting on the other, these valves offer easy installation and maintenance. The orange Nylon handle with a stainless steel insert provides smooth operation and the added locking hardware enhances security in industrial settings. With dimensions designed for seamless integration, these valves meet stringent industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

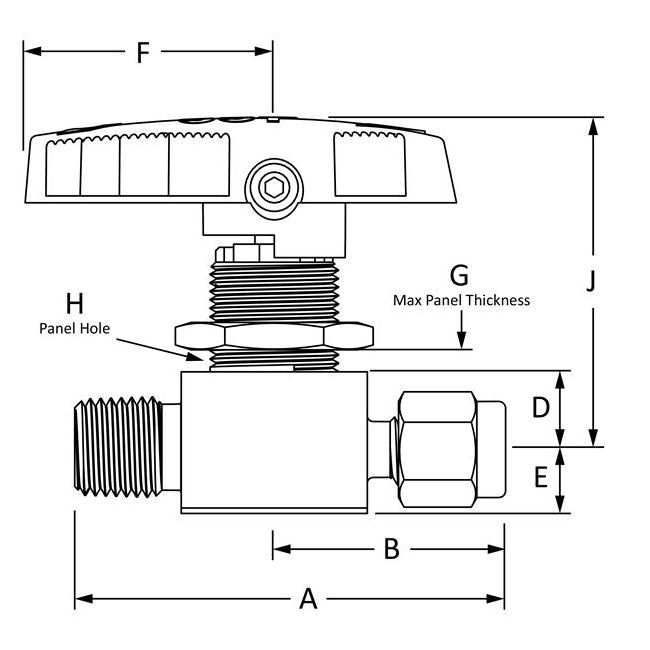

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Unilok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Orange
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
