EB Series Brass Encapsulated Angle Ball Valve 1/4-18 FNPT x 1/4-18 FNPT
EB Series Brass Encapsulated Angle Ball Valve 1/4-18 FNPT x 1/4-18 FNPT
SKU:VAL-2915b4
Premium EB Series Brass Encapsulated Angle Ball Valve for precise flow control in high-pressure industrial environments. Cv: 1.7, 1500 psig, -65 to 150 ºF.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
EB Series Brass Encapsulated Angle Ball Valve 1/4-18 FNPT x 1/4-18 FNPT
$39.99
Quantity: 1
Claim Your Seller Account
EB Series Brass Encapsulated Angle Ball Valve 1/4-18 FNPT x 1/4-18 FNPT
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EB Series Brass Encapsulated Angle Ball Valve is designed for precision flow control in industrial applications. Constructed with durable brass, this valve ensures reliable performance under high pressure conditions up to 1500 psig. Featuring a modified PTFE packing and a sturdy green Nylon handle with a stainless steel insert, it offers exceptional resistance to chemicals and temperature variations (-65 to 150 ºF). With a Cv of 1.7 and a compact design, this valve provides efficient flow management with a tight seal. Compliant with industry standards, it is ideal for Government and institutional procurement needs.
Product Specifications

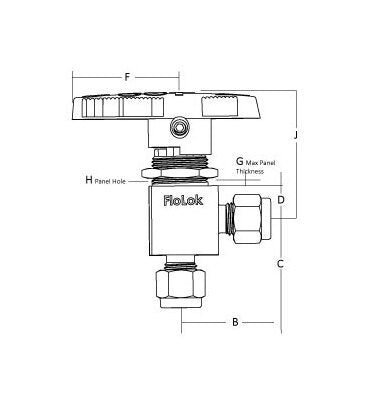

Dimensions B
1.25 in | 31.8 mm
Dimensions C
1.25 in | 31.8 mm
Dimensions D
0.56 in | 14.2 mm
Dimensions F
1.86 in | 47.2 mm
Dimensions G
3/8 in | 9.5 mm
Dimensions H
1 1/8 in | 28.6 mm
Dimensions J
2.1 in | 53.3 mm
Dimensions Panel Bore
1 1/8 in
Dimensions W
1.12 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Cv
1.7
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.281 in | 7.14 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
Angle
Specifications Ssp Pn
44GA4PF-B
Specifications Temperature
-65 to 150 ºF | -53 to 65 ºC
Specifications Type
Ball
Specifications Working Pressure
1500 psig | 103 bar
