EB Series Brass Encapsulated Angle Ball Valve

EB Series Brass Encapsulated Angle Ball Valve

VAL-db8ee8

Durable EB Series brass angle ball valve with modified PTFE packing and locking hardware for secure fluid control.

$39.99
$39.99
Sale

Initiate Order

EB Series Brass Encapsulated Angle Ball Valve

EB Series Brass Encapsulated Angle Ball Valve

$39.99

Quantity: 1

Claim Your Seller Account

EB Series Brass Encapsulated Angle Ball Valve

EB Series Brass Encapsulated Angle Ball Valve

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance fluid control with the EB Series Brass Encapsulated Angle Ball Valve. This valve features durable brass construction, modified PTFE packing for enhanced sealing, and a black nylon handle with a stainless steel insert for secure operation. With a working pressure of 2500 psig and a temperature range of -65 to 300°F, this valve ensures reliable performance in a variety of applications. The locking hardware provides added security, making it ideal for institutional and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

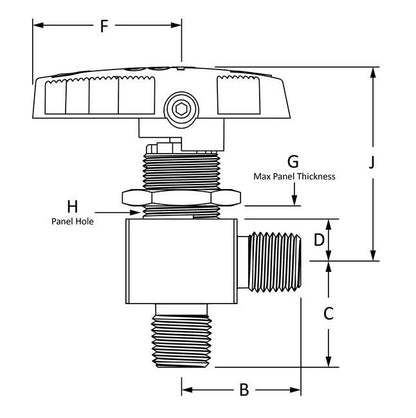

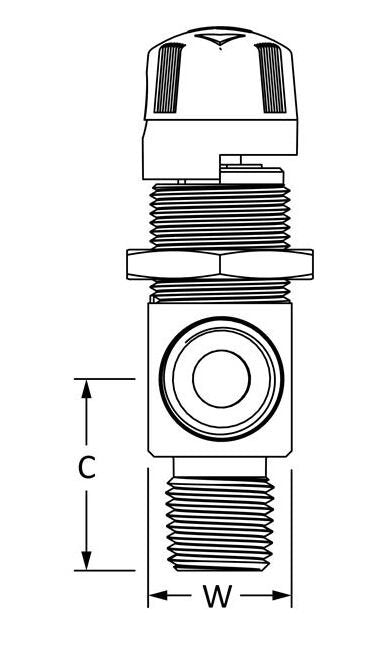

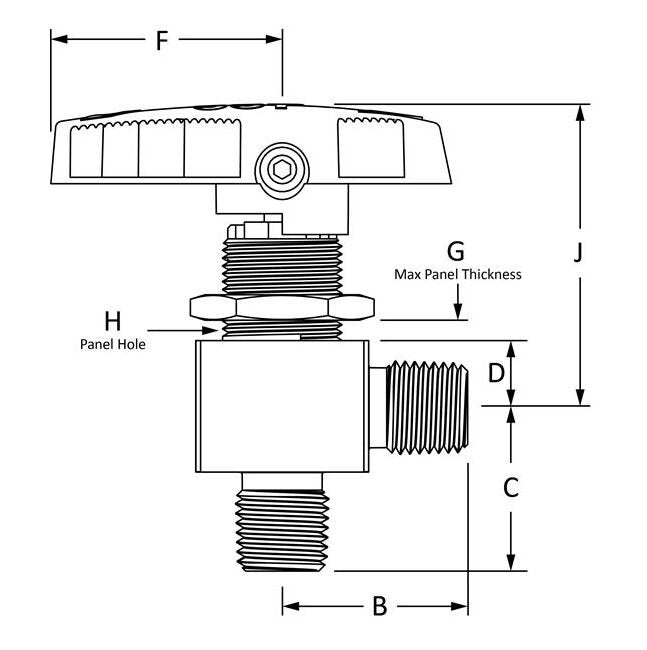

Dimensions B
1 in | 25.4 mm
Dimensions C
1.03 in | 28.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions F
1.43 in | 47.2 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.9 mm
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
0.75
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.75 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
Angle
Specifications Ssp Pn
43GA4PM-B
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
Specifications Working Pressure
2500 psig | 172 bar
