EB Series C-276 Encapsulated 2-Way Ball Valves
EB Series C-276 Encapsulated 2-Way Ball Valves
SKU:VAL-eb3748
Premium EB Series C-276 Encapsulated 2-Way Ball Valves for industrial applications. Alloy C-276 construction, modified PTFE packing, and 3/8 in Female BSPT connections.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
EB Series C-276 Encapsulated 2-Way Ball Valves
$89.99
Quantity: 1
Claim Your Seller Account
EB Series C-276 Encapsulated 2-Way Ball Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

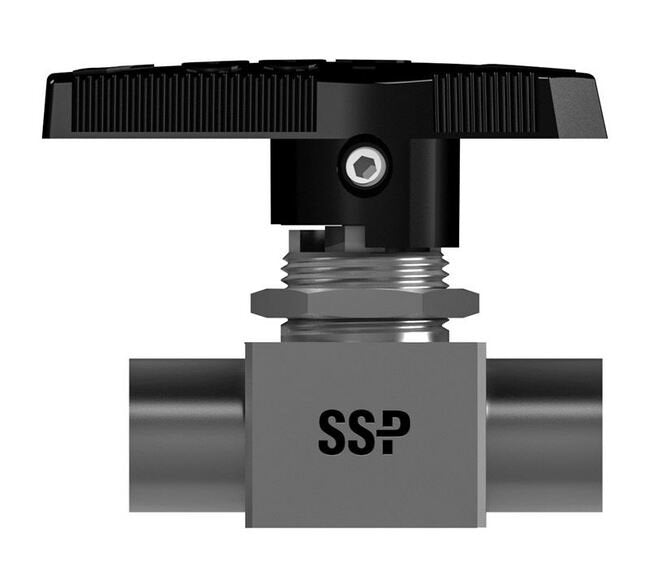

The EB Series C-276 Encapsulated 2-Way Ball Valves are crafted with Alloy C-276 for superior durability. Featuring 3/8 in Female BSPT connections, handle with yellow Nylon and Stainless Steel insert, and modified PTFE packing, these valves offer exceptional performance in a temperature range from -65 to 150°F. With a Cv of 2.6 and a maximum working pressure of 2500 psig, these valves ensure precise control and reliability in industrial applications.

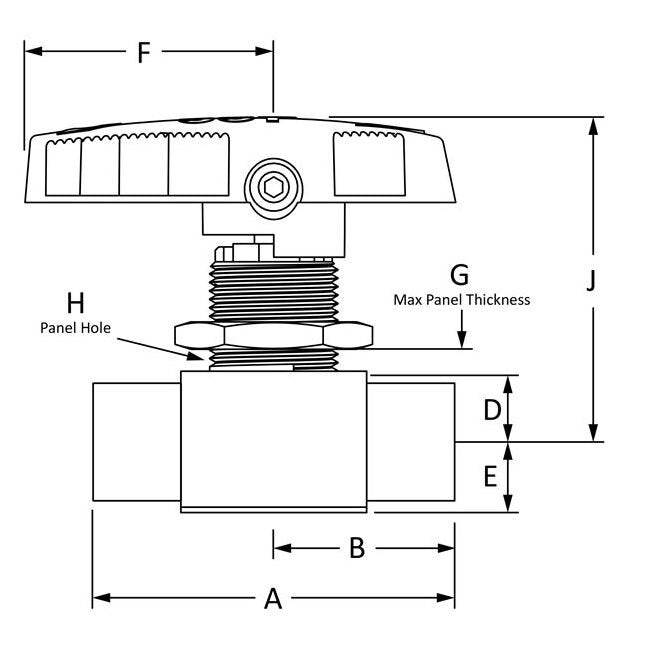

Product Specifications
Dimensions A
2.50 in | 63.5 mm
Dimensions B
1.25 in | 31.8 mm
Dimensions D
0.56 in | 14.2 mm
Dimensions E
0.56 in | 14.2 mm
Dimensions F
1.86 in | 47.2 mm
Dimensions G
3/8 in | 9.5 mm
Dimensions H
1 1/8 in | 28.6 mm
Dimensions J
2.1 in | 53.3 mm

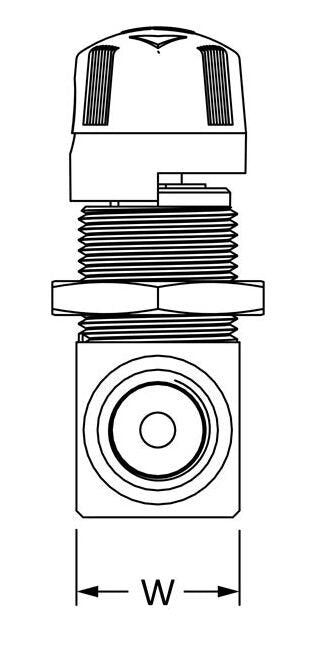

Dimensions W
1.12 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Female BSPT
Specifications Cv
2.6
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.281 in | 7.1374 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 150 ºF | -53 to 65 ºC
Specifications Working Pressure
2500 psig | 172 bar
