EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT
EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT
SKU:VAL-0329e2
High-performance EB Series Encapsulated 2-way Ball Valves for precise flow control in industrial settings.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT
$45.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4-18 MNPT
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

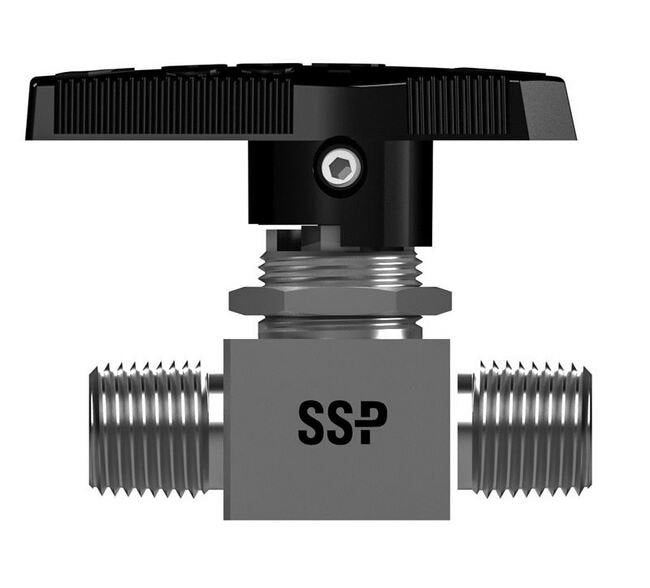

The EB Series Encapsulated 2-way Ball Valves are meticulously designed for superior performance and reliability. Constructed from high-grade 316 SS material, featuring 1/4-18 MNPT connections, and a Cv of 1.20, these valves ensure precise flow control. With a working pressure of 3000 psig and a temperature range from -65 to 300°F, they excel in demanding environments. The modified PTFE packing guarantees leak-free operation, while the orange nylon handle with a stainless steel insert offers durability and ease of use. Ideal for industrial applications requiring efficiency, durability, and compliance with stringent standards.
Product Specifications

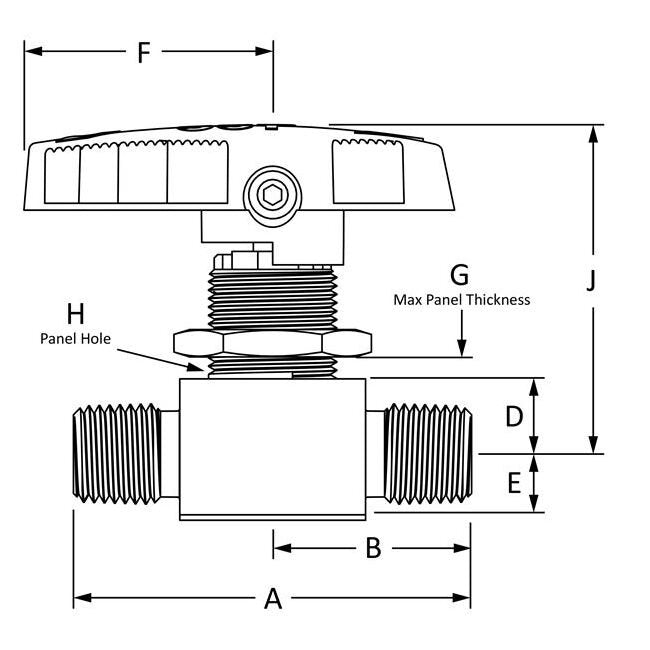

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

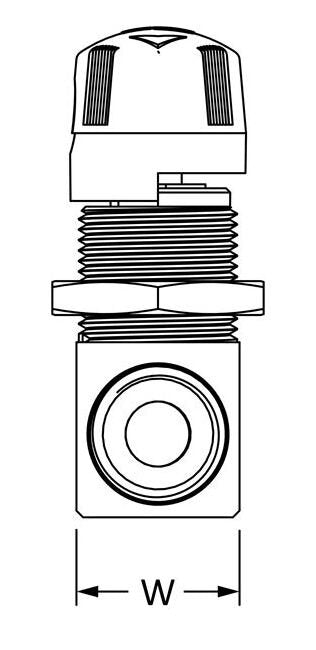

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Orange
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
