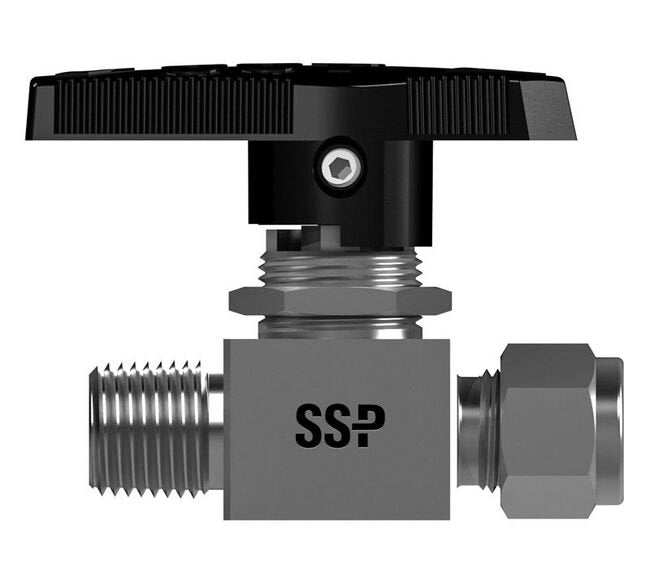

EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4 in
EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4 in
SKU:VAL-524bfe
Enhance fluid control with EB Series Encapsulated 2-way Ball Valves - ideal for precise industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4 in
$49.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated 2-way Ball Valves - 316 SS, 1/4-18 MNPT x 1/4 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid handling systems with the EB Series Encapsulated 2-way Ball Valves. Crafted from durable 316 SS, these valves feature 1/4-18 MNPT and 1/4 in Unilok Tube Fitting connections. With a Cv of 0.75 and high-quality Modified PTFE packing, these valves ensure reliable performance in a wide temperature range (-65 to 300°F). The sturdy yellow Nylon handle with a Stainless Steel insert offers easy operation and longevity. With a working pressure of 3000 psig, these valves are ideal for industrial applications requiring precision control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

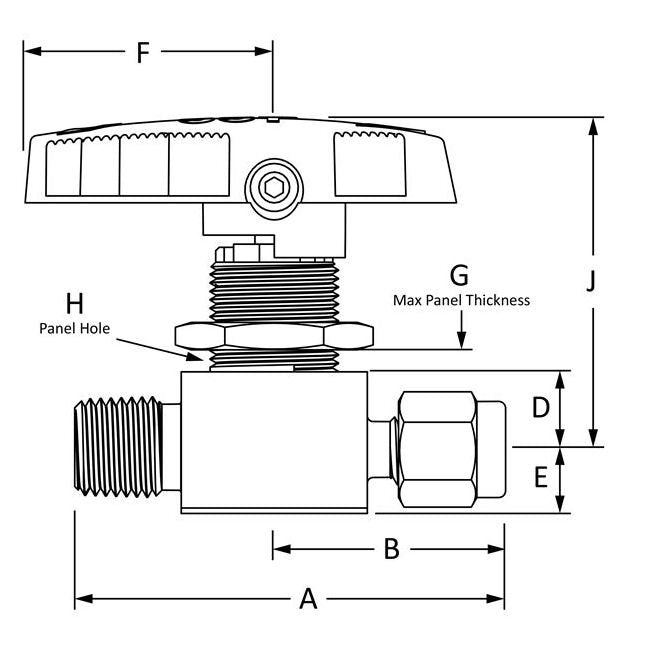

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Unilok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
