EB Series Encapsulated 2-way Ball Valves
EB Series Encapsulated 2-way Ball Valves
SKU:VAL-697deb
Reliable EB Series Encapsulated 2-way Ball Valves for industrial applications. 316 SS construction, 1/4-18 MNPT x 1/4 in Griplok Tube Fitting, Cv: 0.75.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
EB Series Encapsulated 2-way Ball Valves
$75.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated 2-way Ball Valves
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

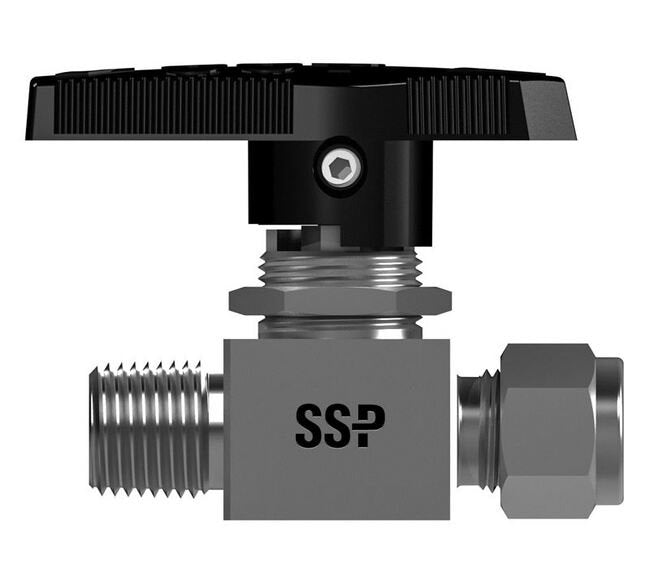

Enhance your industrial operations with the EB Series Encapsulated 2-way Ball Valves. Constructed from 316 SS, these valves feature a 1/4-18 MNPT x 1/4 in Griplok Tube Fitting, ensuring secure connections. With a Cv of 0.75, Modified PTFE packing, and a Black Nylon handle with SS Insert, these valves offer reliable performance. Operating at temperatures ranging from -65 to 300 °F and a working pressure of 3000 psig, they are designed to meet the demands of rigorous environments.
Product Specifications

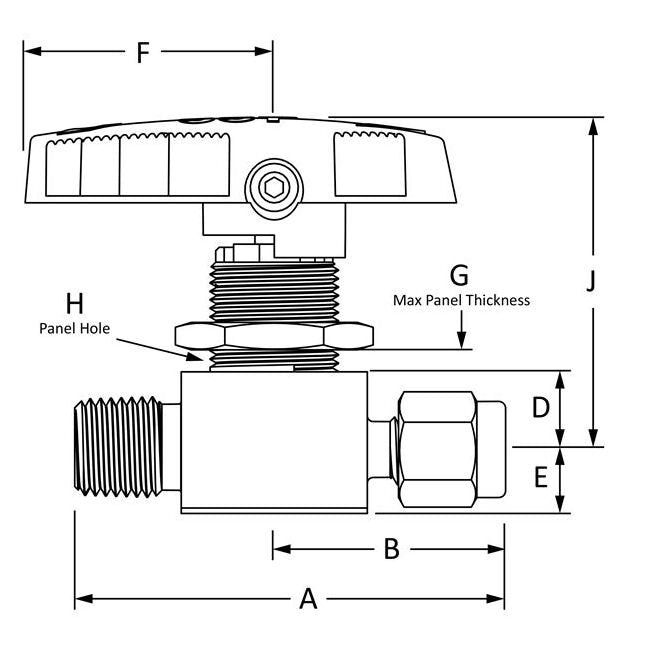

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Griplok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
