EB Series Encapsulated 2-way Ball Valves - Brass 1/4 MNPT x 1/4 Unilok
EB Series Encapsulated 2-way Ball Valves - Brass 1/4 MNPT x 1/4 Unilok
SKU:VAL-483ed2
Premium EB Series Brass Ball Valves with 1/4 MNPT x 1/4 Unilok, Cv: 0.75, ideal for high-pressure systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
EB Series Encapsulated 2-way Ball Valves - Brass 1/4 MNPT x 1/4 Unilok
$39.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated 2-way Ball Valves - Brass 1/4 MNPT x 1/4 Unilok
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

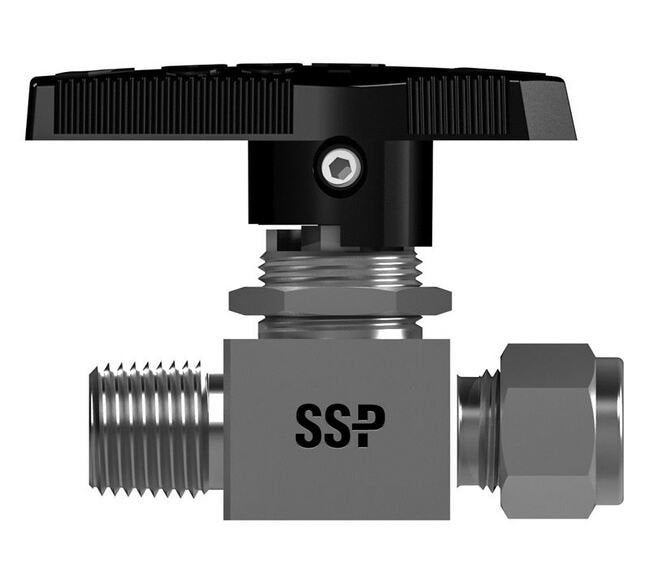

Upgrade your valve system with our EB Series Encapsulated 2-way Ball Valves. Constructed from durable Brass, featuring 1/4 MNPT and 1/4 Unilok Tube Fitting connections, with a Cv of 0.75. The modified PTFE Packing ensures reliable performance in temperatures ranging from -65 to 300°F. This valve meets high industry standards for working pressure up to 3000 psig and is designed for precision control in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

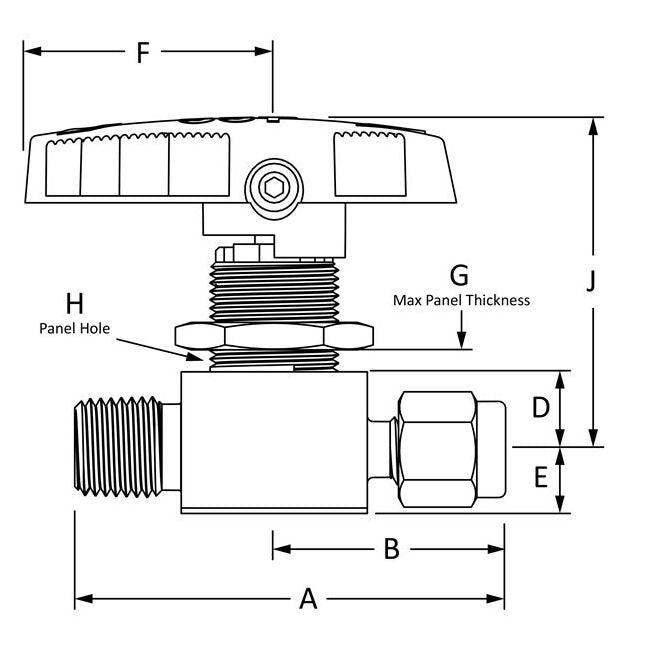

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Unilok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Red
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
