EB Series Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, Cv: 0.75
EB Series Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, Cv: 0.75
SKU:VAL-f35b3d
Premium Alloy 400 3-way ball valves with 1/4 in Female BSPT connections, Cv: 0.75, and XQS flow pattern.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
EB Series Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, Cv: 0.75
$49.99
Quantity: 1
Claim Your Seller Account
EB Series Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, Cv: 0.75
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EB Series Encapsulated 3-way Ball Valves are crafted from durable Alloy 400, ideal for demanding industrial applications. Featuring precise 1/4 in Female BSPT connections, a Cv of 0.75, and a robust Modified PTFE packing, these valves ensure reliable and leak-free performance. With a flow pattern of XQS, green Nylon handle with Stainless Steel insert, and locking hardware for added security, these valves offer maximum control and durability. Engineered for temperatures ranging from -65 to 300 °F, these valves provide exceptional reliability in a compact design.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

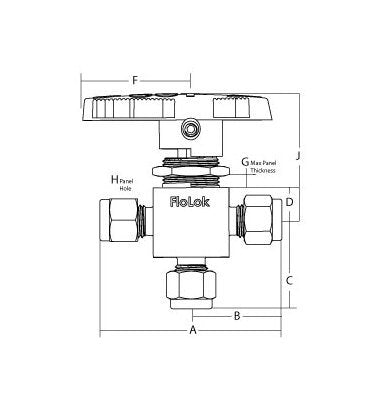

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-M
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
